Product Description

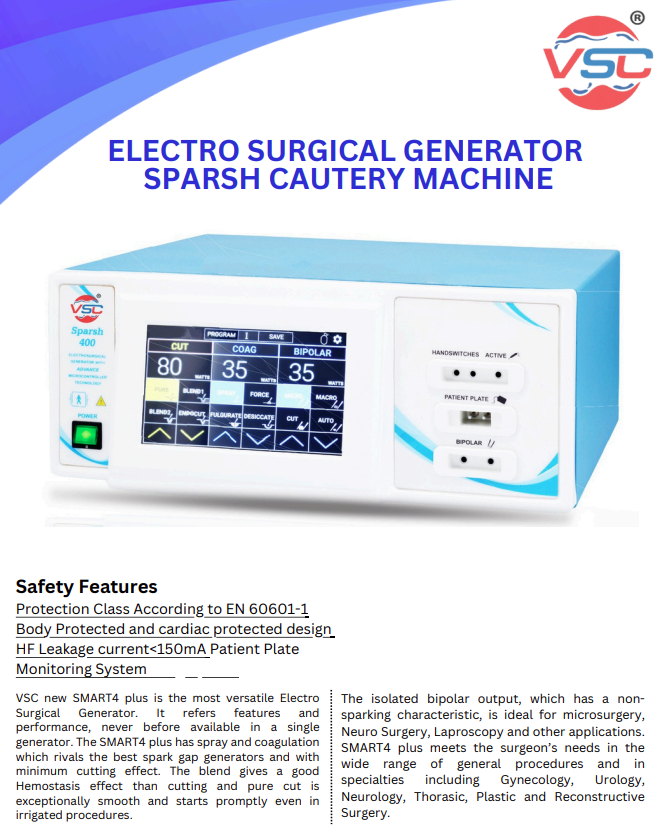

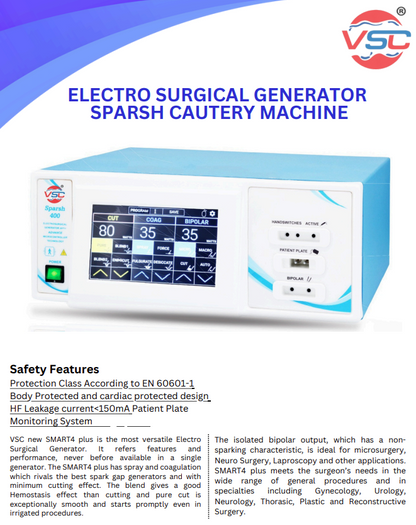

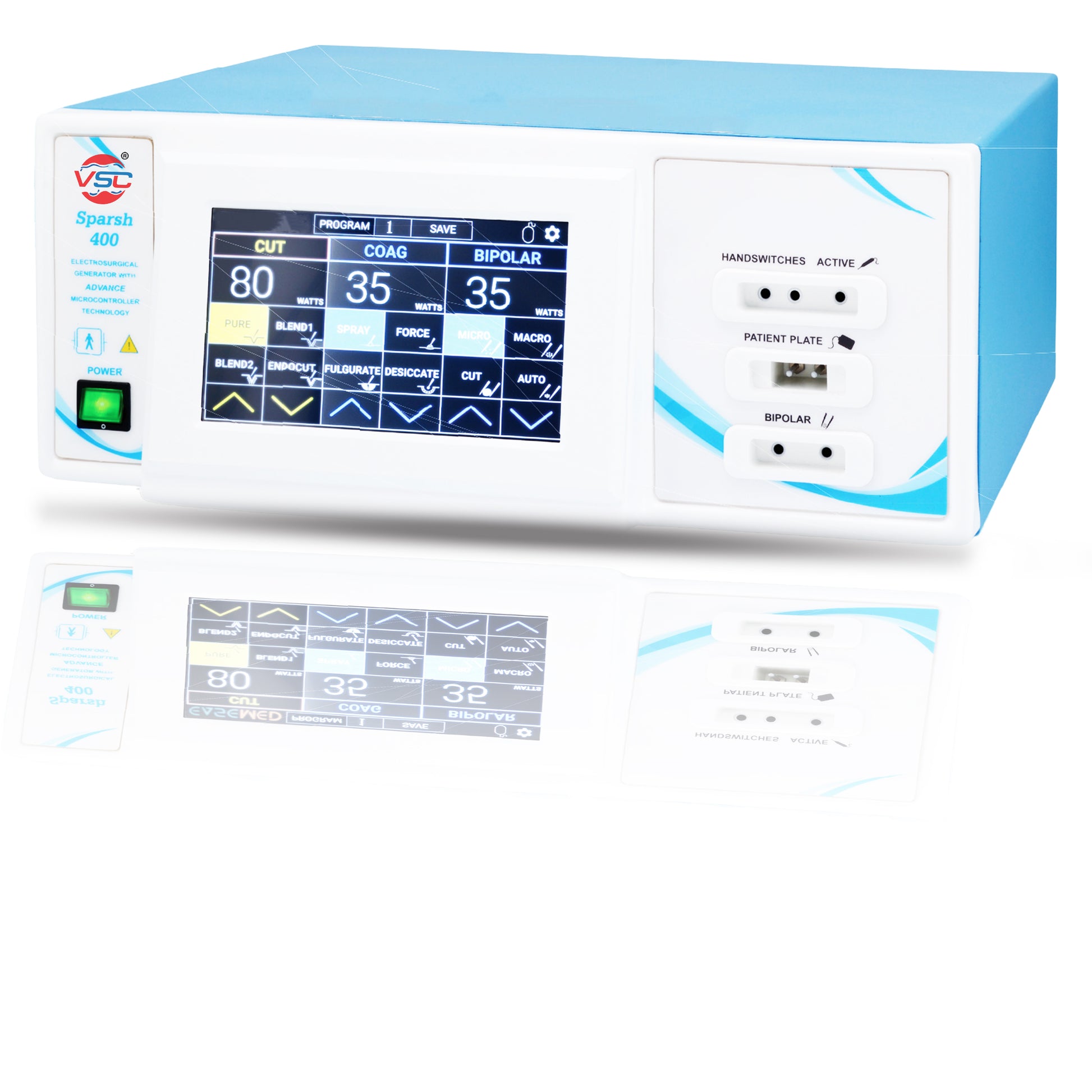

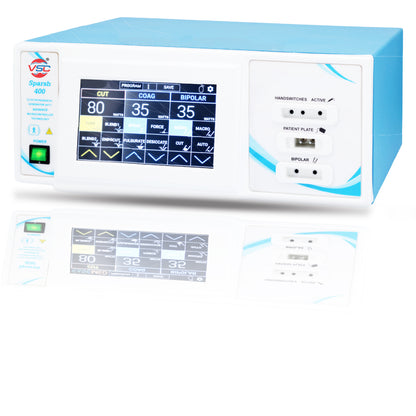

The Sparsh 400 Advanced Touchscreen Electrosurgical Generator 400W is a high-performance cautery system designed for precise cutting and coagulation in surgical applications. It features a responsive touchscreen interface, multiple operating modes, and programmable settings for controlled and consistent output.

Equipped with both monopolar and bipolar functionality, the unit provides flexibility across a wide range of surgical procedures. Its advanced digital control system and user-settable programs enable efficient operation and customization based on procedural requirements.

Designed with integrated safety mechanisms such as patient plate monitoring and controlled leakage current, the system ensures reliable and stable performance in clinical environments. Its compact design and included accessories support seamless integration into modern surgical setups.

Key Features

• 400W high-performance electrosurgical output
• Advanced touchscreen control panel
• Monopolar and bipolar functionality
• Multiple modes: Cut, Blend, Coagulation, Bipolar
• 99 programmable user modes
• Stable high-frequency output

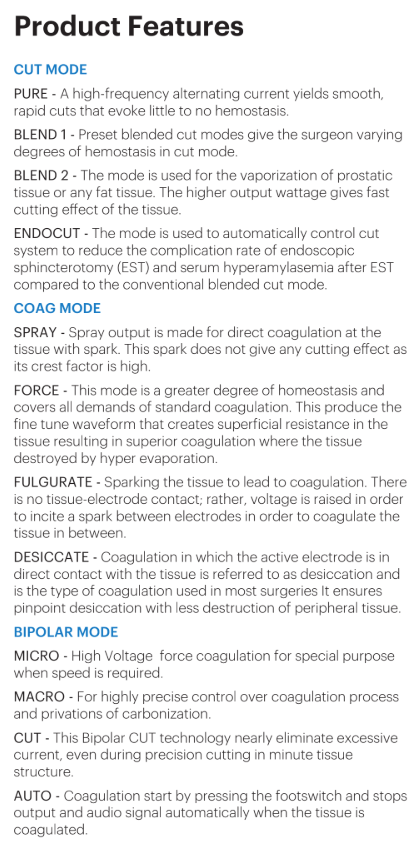

Operating Modes

CUT MODE

• Pure Cut
• Blend 1 & Blend 2
• Endocut

COAG MODE

• Spray
• Force
• Fulgurate
• Desiccate

BIPOLAR MODE

• Micro
• Macro
• Cut
• Auto

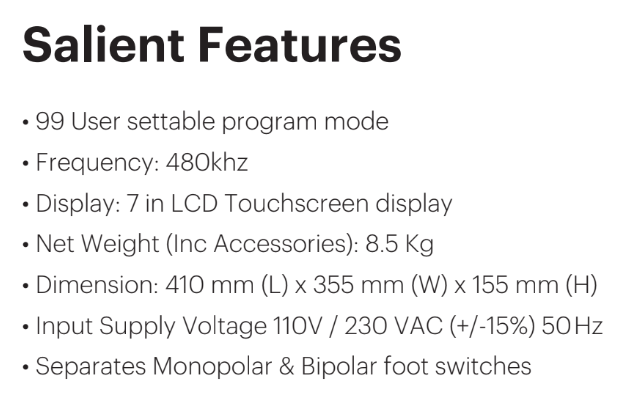

Salient Features

• 7-inch LCD touchscreen display
• Frequency: 480 kHz (Monopolar)
• Frequency: 1 MHz (Seal Mode)
• User-settable program modes (up to 99)
• Separate monopolar & bipolar foot switch support
• Compact and user-friendly design

Safety Features

• Protection class as per EN 60601-1
• Body and cardiac protection design
• HF leakage current <150 mA
• Patient plate monitoring system

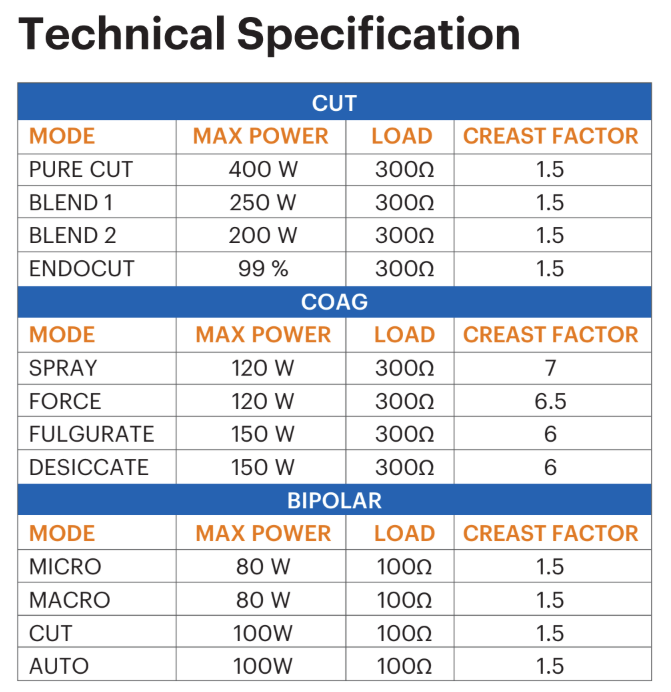

Technical Specifications

1. Power Output: 400W
2. Input Voltage: 110V / 230V AC (±15%), 50 Hz
3. Display: 7-inch LCD Touchscreen
4. Frequency: 480 kHz / 1 MHz
5. Dimensions: 410 × 355 × 155 mm
6. Weight: Approx. 8.5 kg
7. Warranty: 1 Year

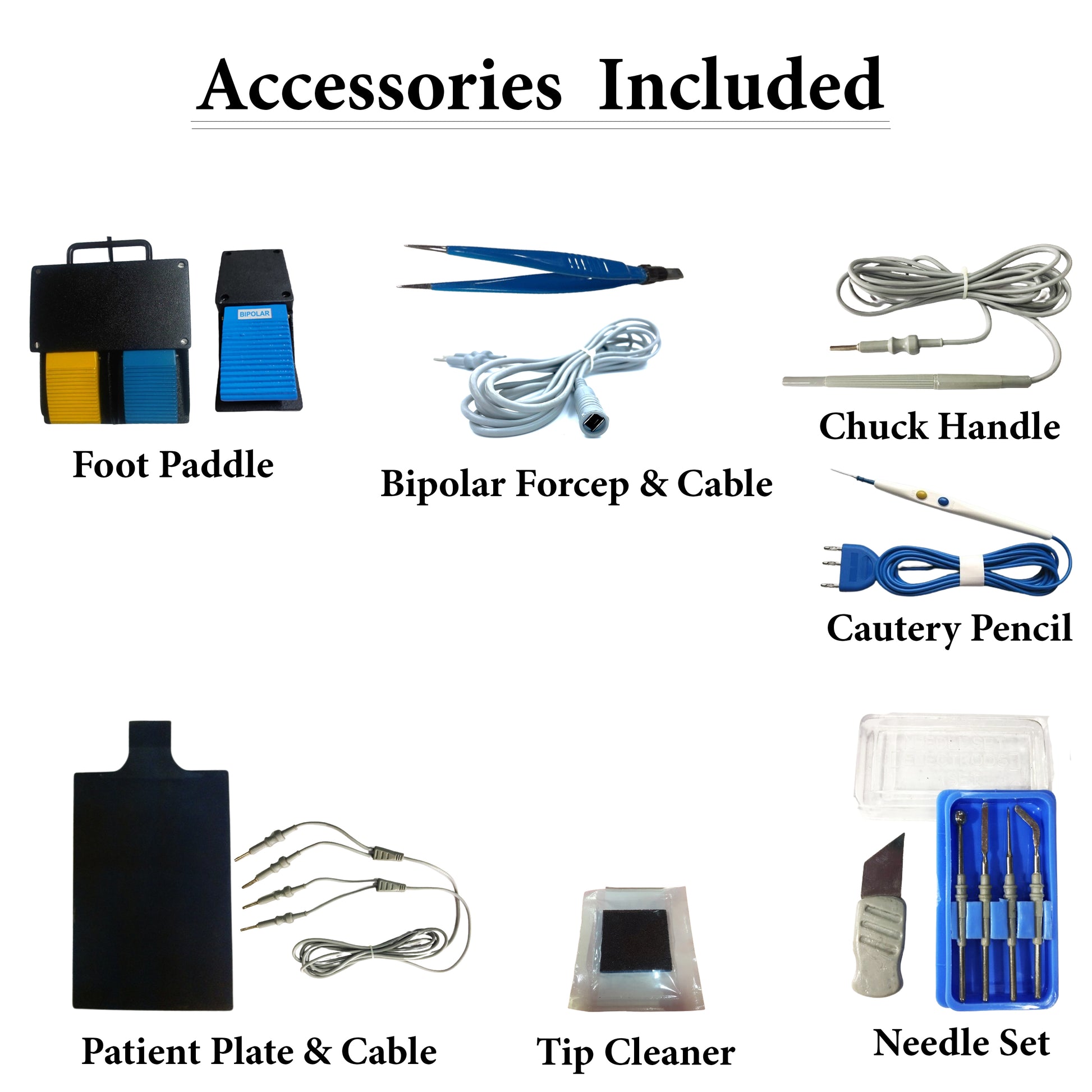

Accessories Included

1. Monopolar & bipolar foot switch
2. Bipolar forceps with cable
3. Patient plate with cable
4. Cautery pencil
5. Chuck handle with electrodes
6. Tip cleaner
7. Needle set
