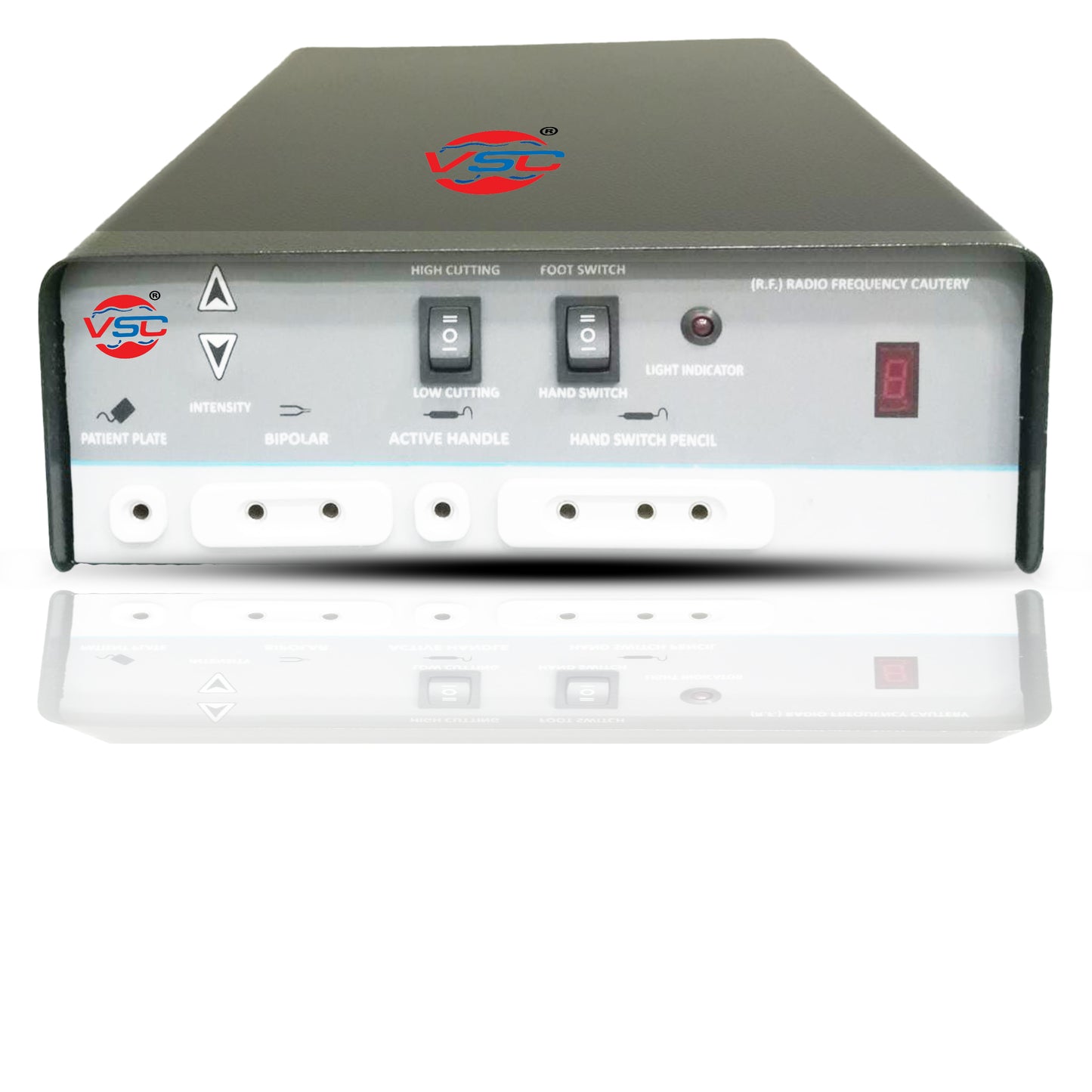

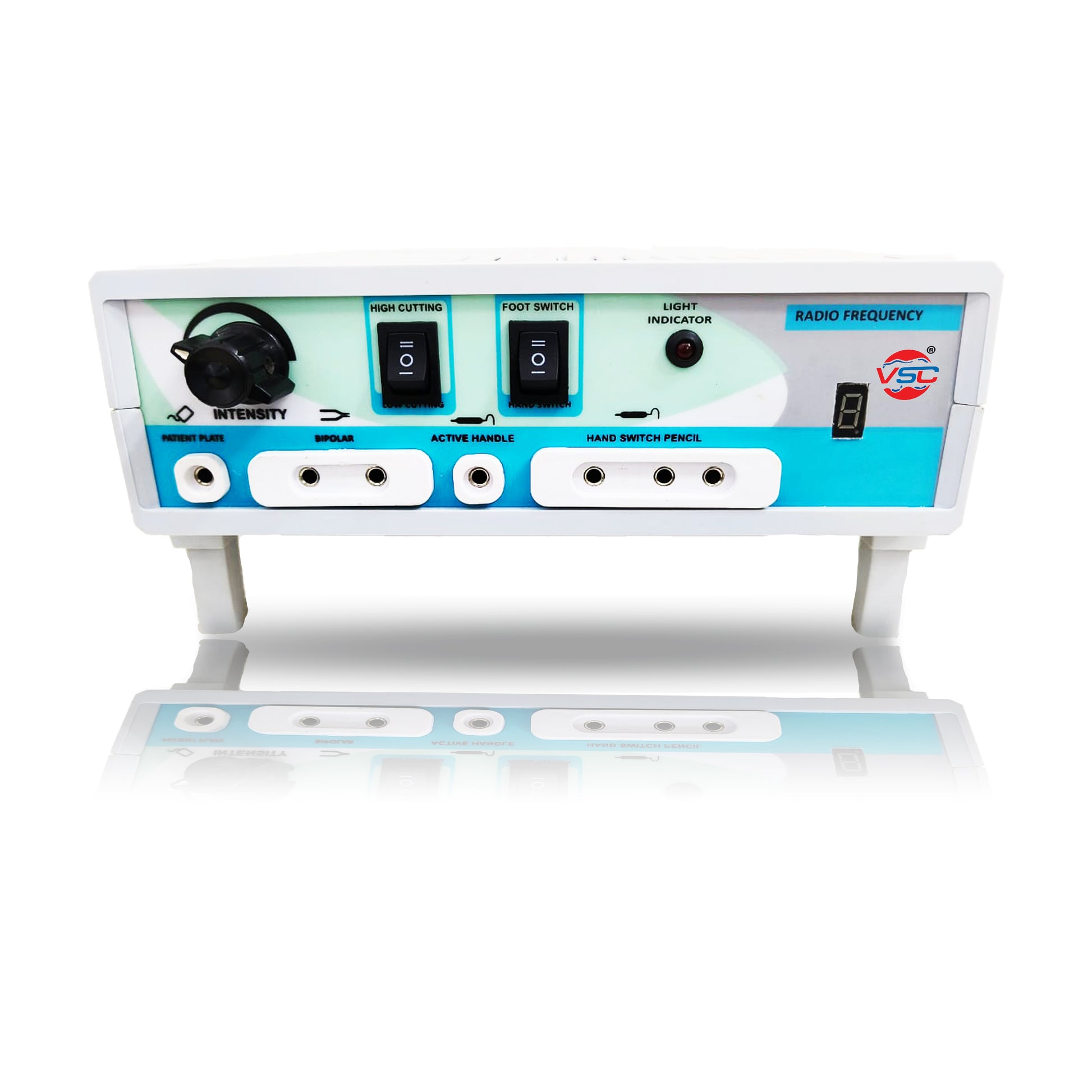

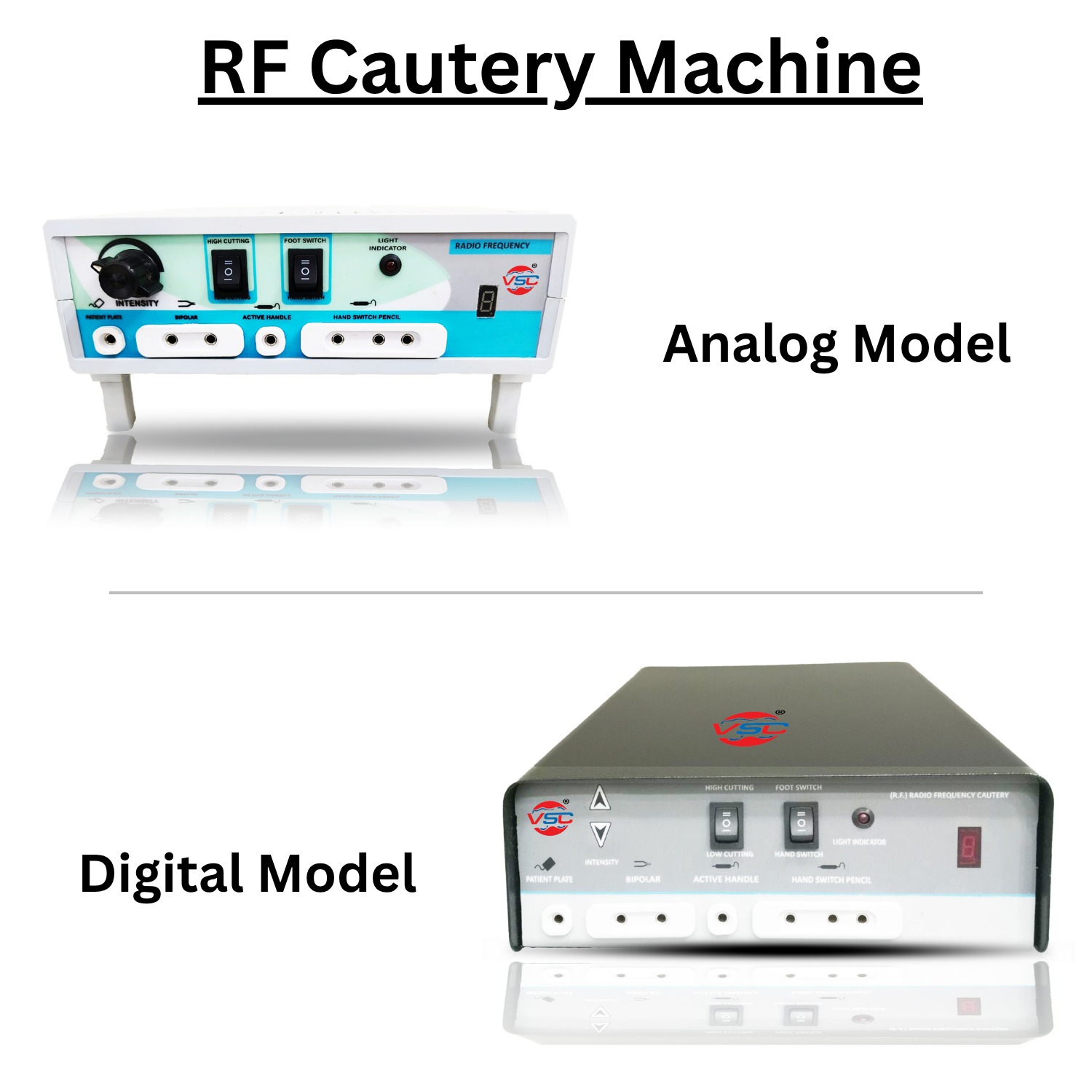

Product Description

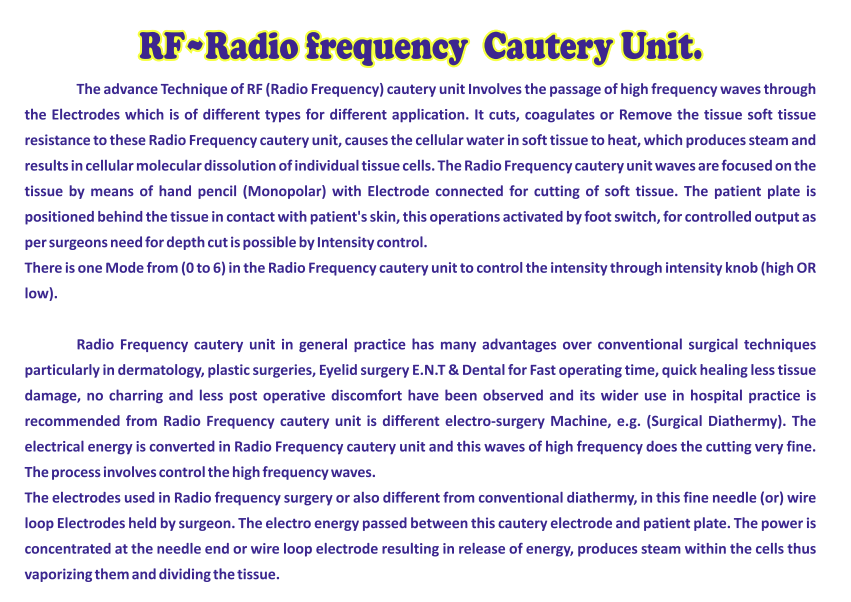

The Radio Frequency (RF) Cautery Machine is an advanced electrosurgical unit designed for precise cutting, coagulation, and tissue treatment using high-frequency radio waves. It delivers controlled energy output, ensuring efficient performance with minimal thermal damage.

This unit operates using high-frequency alternating current, enabling smooth tissue interaction and reliable surgical outcomes. The system is suitable for a wide range of applications including dermatology, ENT, cosmetic procedures, and general surgical use.

The RF cautery machine is engineered for stable performance, user-friendly operation, and compatibility with multiple electrode types, making it a versatile solution for modern clinical environments.

Applications

• Skin tags, warts, corns removal
• Dermatology treatments
• Cosmetic & plastic procedures
• ENT procedures
• Epilation & lesion removal
• Biopsies & minor surgeries

Key Features

• High-frequency RF output for precise performance
• Adjustable intensity control for better accuracy
• Minimal lateral heat for reduced tissue damage
• Smooth cutting and coagulation effect
• Compact and user-friendly design

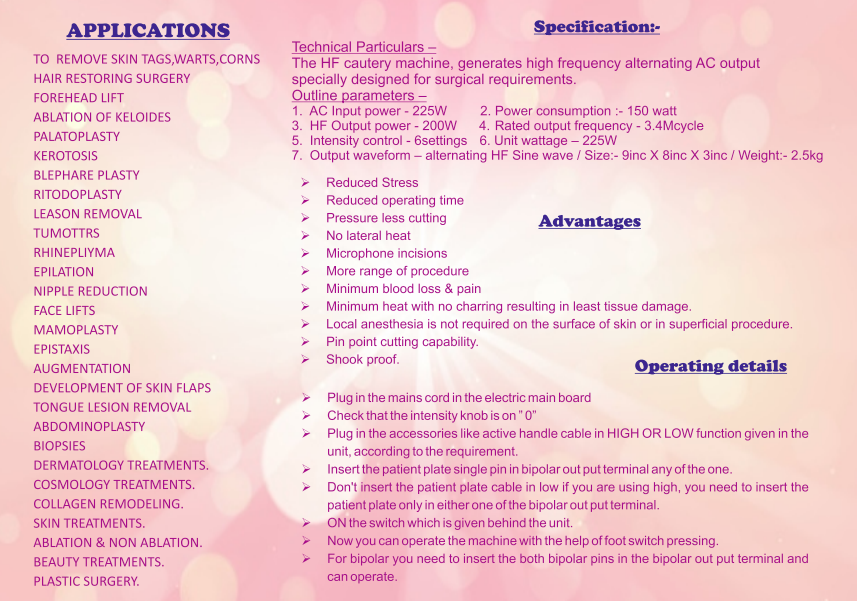

Technical Specifications

1. Output Type: High frequency alternating AC
2. Input Voltage: 110V / 230V AC ±15%, 50/60 Hz

3. Power Consumption: Approx. 150W
4. Output Frequency: ~3.4 MHz
5. HF Output Power: Up to 200W
6. Input Power: ~25W
7. Output Waveform: Sine wave
8. Size: 9 x 8 x 3 inches (approx)
9. Weight: Approx. 2.5 kg
10. Warranty: 1 Year

Advantages

• Reduced operating time
• Minimal blood loss
• Less tissue damage
• No lateral heat spread
• Fine precision cutting
• Suitable for superficial procedures

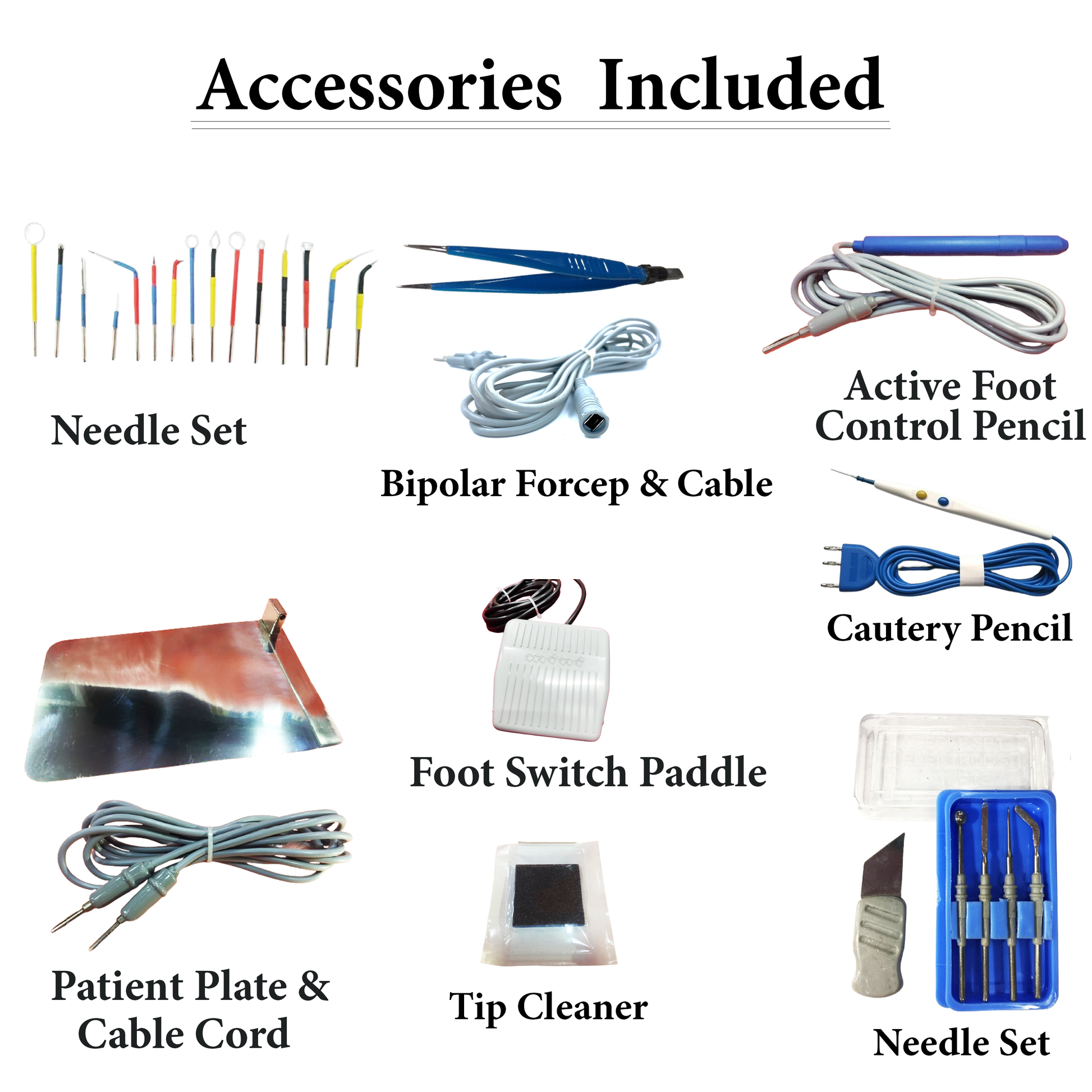

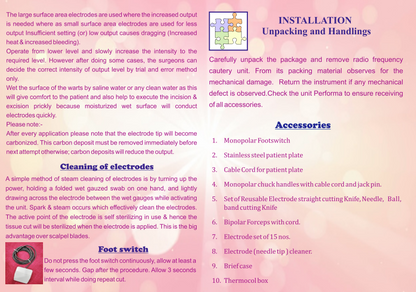

Accessories Included

1. Active hand pencil
2. Bipolar forceps with cable
3. Patient plate & cable
4. Foot switch pedal
5. Electrode set (multiple types)
6. Electrode cleaner
7. Power cord
