Product Description

The Laparoscopic CO₂ Insufflator is a precision medical device designed to deliver controlled carbon dioxide flow during minimally invasive surgical procedures. It ensures accurate pressure regulation and stable gas flow to support efficient laparoscopic operations.

This system is available in multiple models, including standard ABS 30L variants and advanced models with enhanced functionality such as air mode and inbuilt regulators. It features microcontroller-based technology for precise control of pressure, flow rate, and gas volume, ensuring consistent and reliable performance.

The advanced models are equipped with integrated gas warming and safety systems, supporting stable operation and optimized performance in clinical environments.

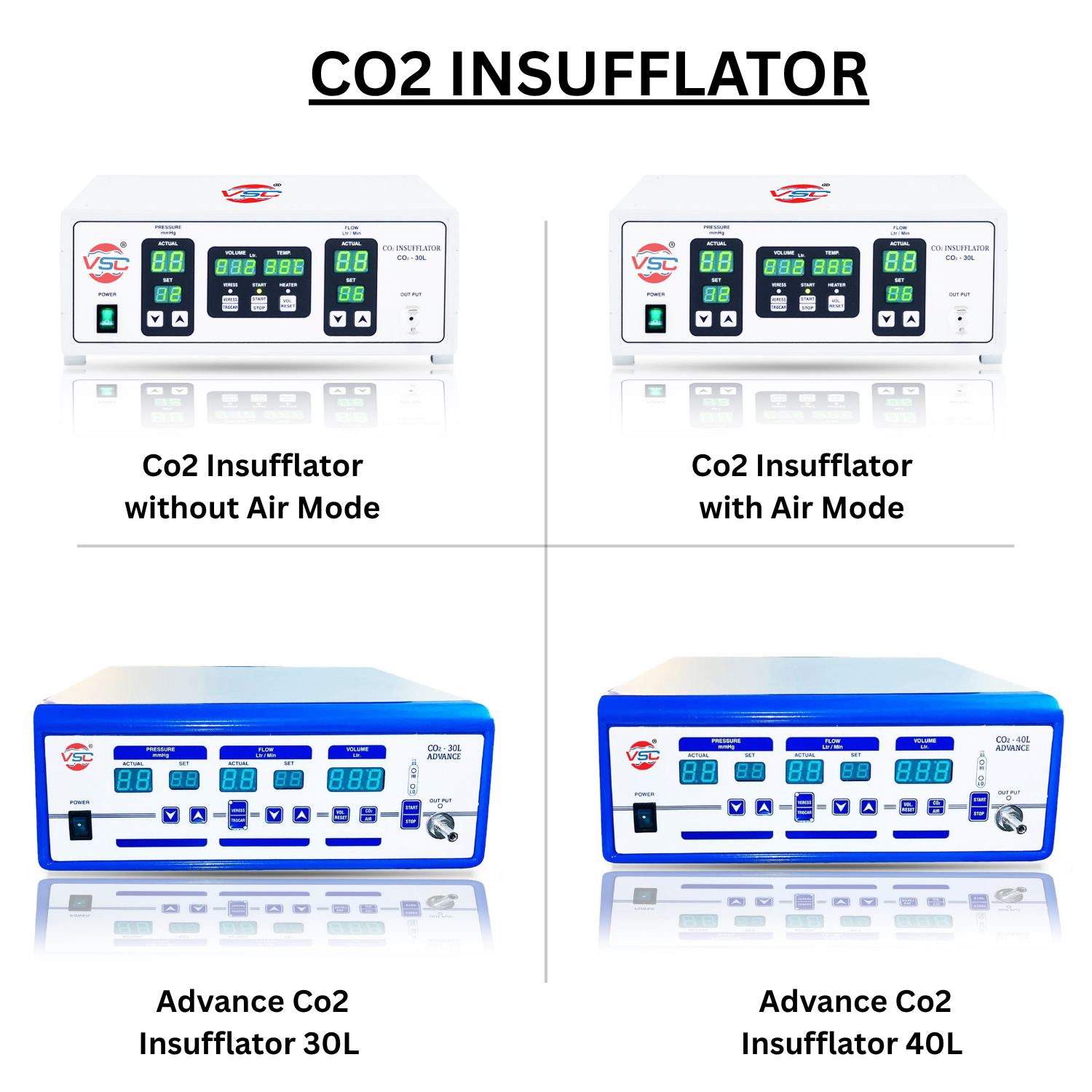

Available Variations

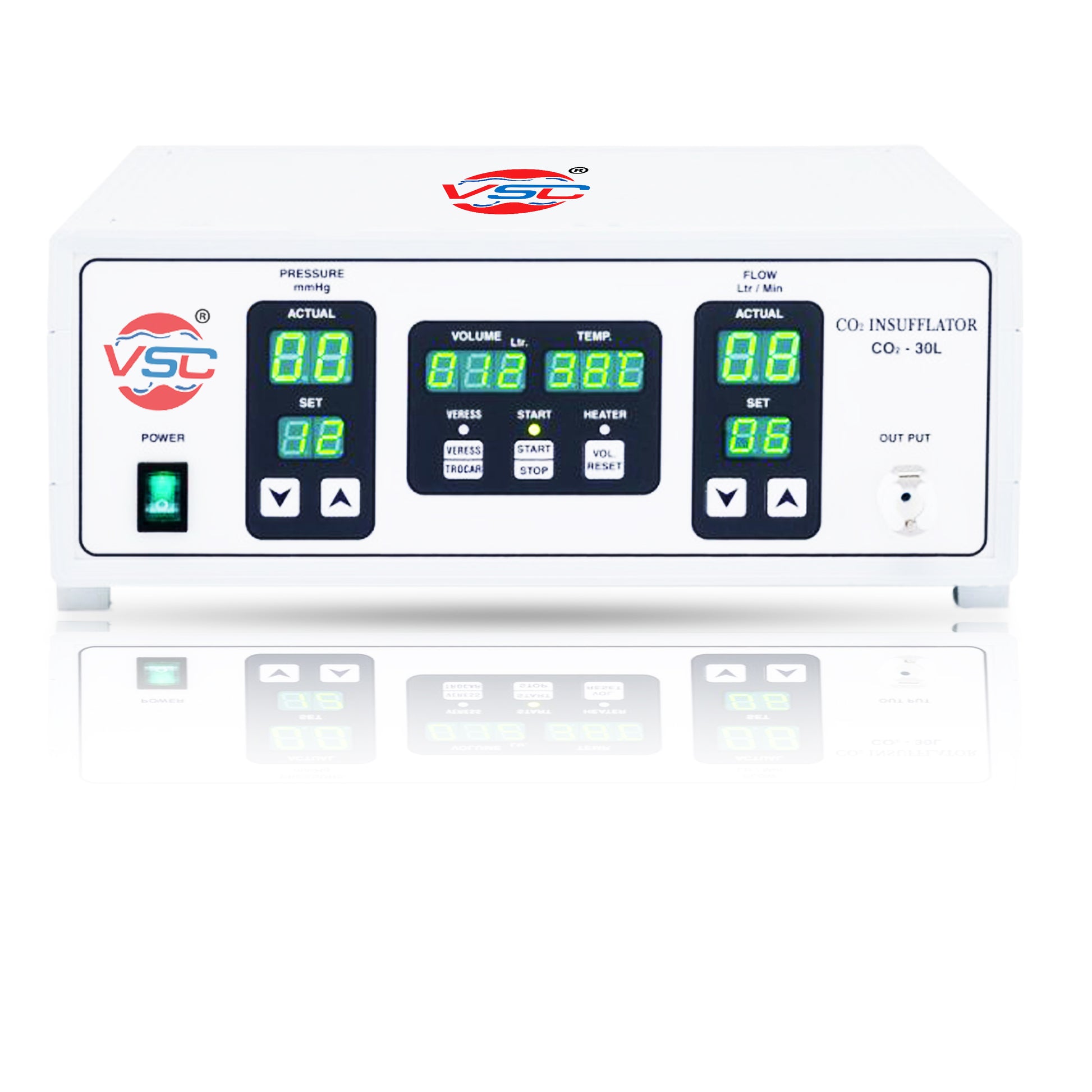

🔹 ABS 30L (Without Air Mode)

• Standard CO₂ insufflation system
• Flow rate up to 30 L/min
• Stable pressure and flow control
• Simple and reliable design

🔹 ABS 30L (With Air Mode)

• Integrated CO₂ + air mode option
• Emergency air mode function
• Digital control interface
• Suitable for flexible usage

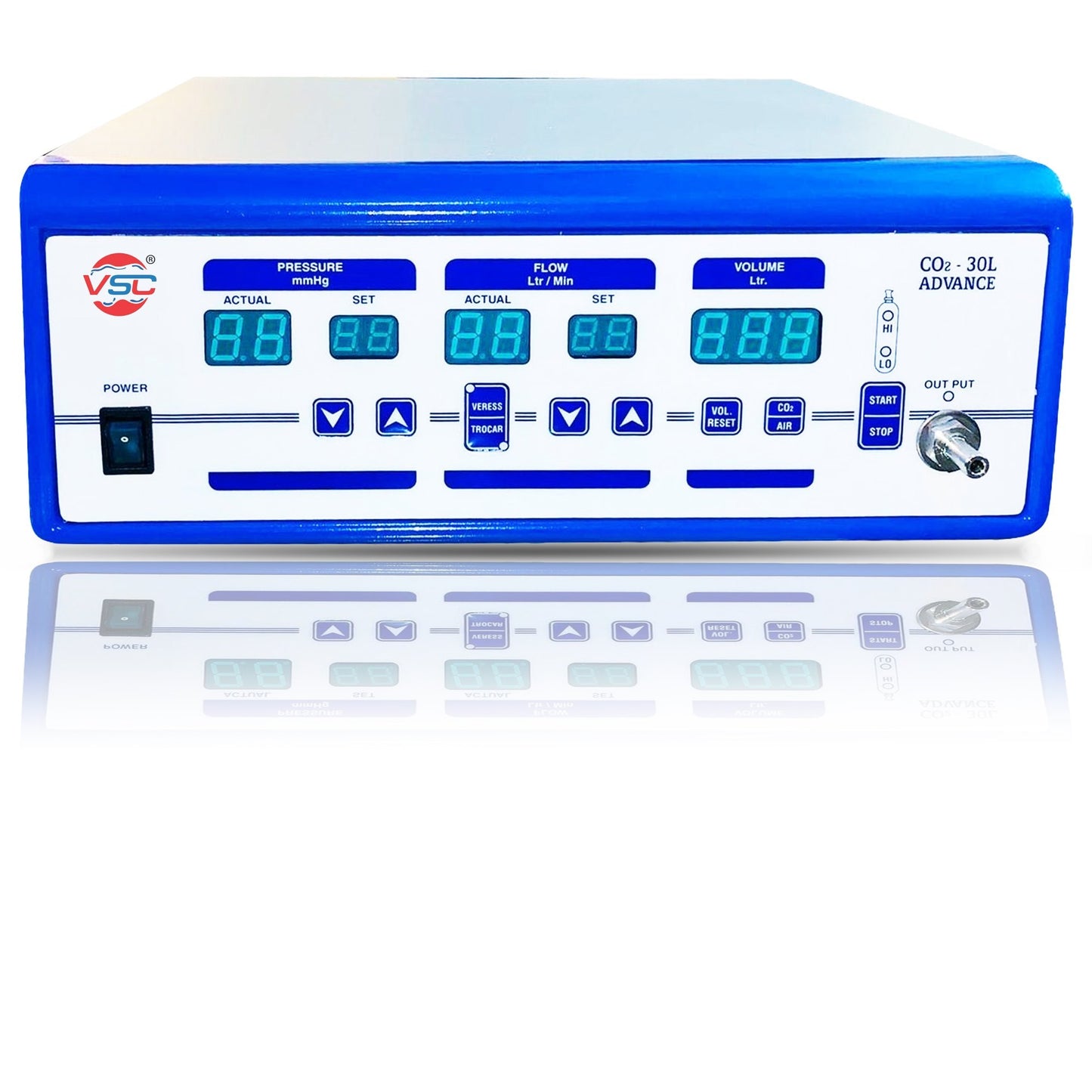

🔹 Advance CO₂ 30L

• Inbuilt gas regulator
• Microcontroller-based closed-loop control
• Digital display for pressure, flow & volume
• Integrated gas warmer system

🔹 Advance CO₂ 40L

• Higher flow capacity up to 40 L/min
• Inbuilt regulator and air mode
• Advanced flow control technology
• Enhanced performance for high-demand procedures

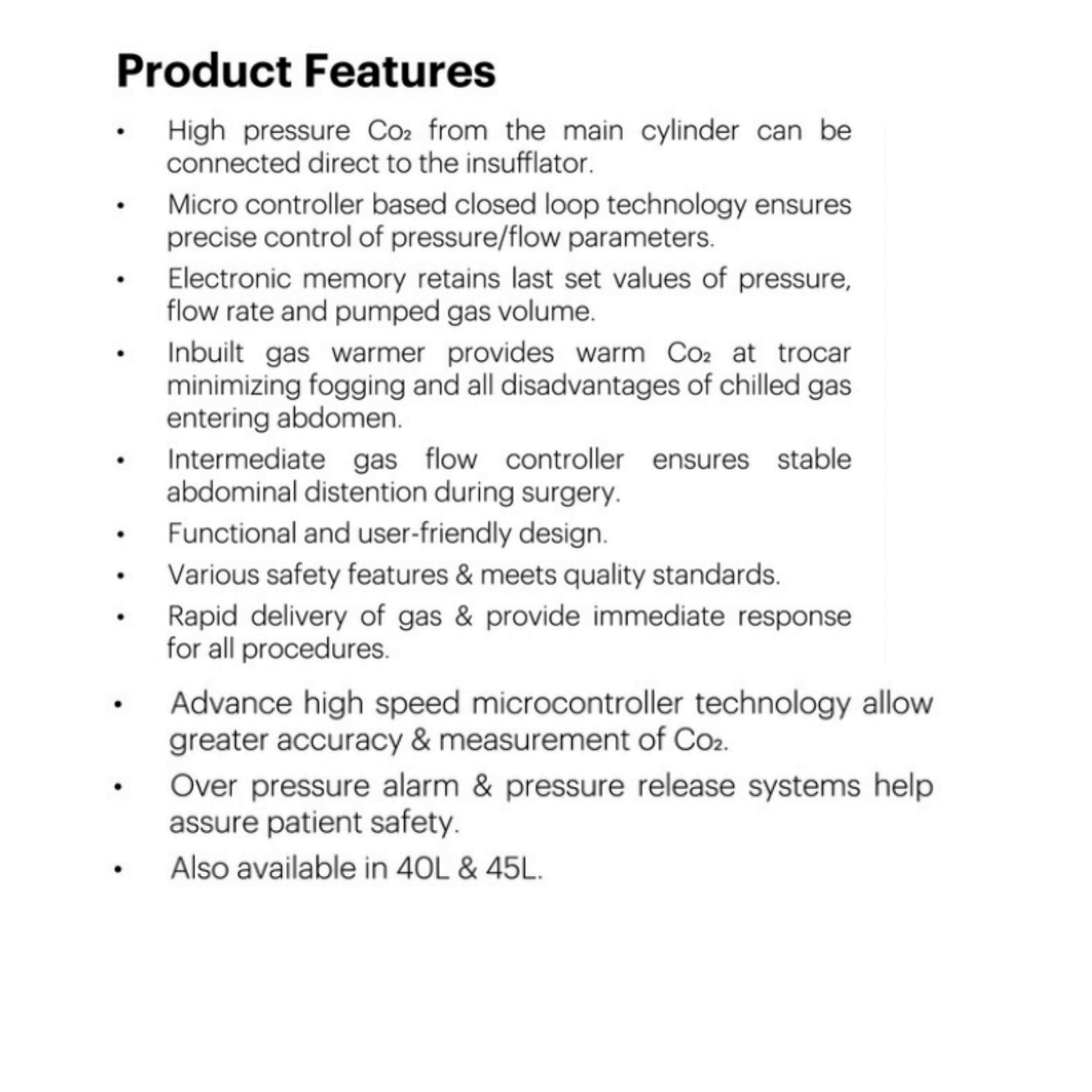

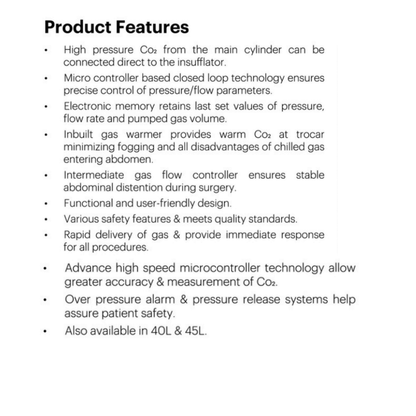

Key Features

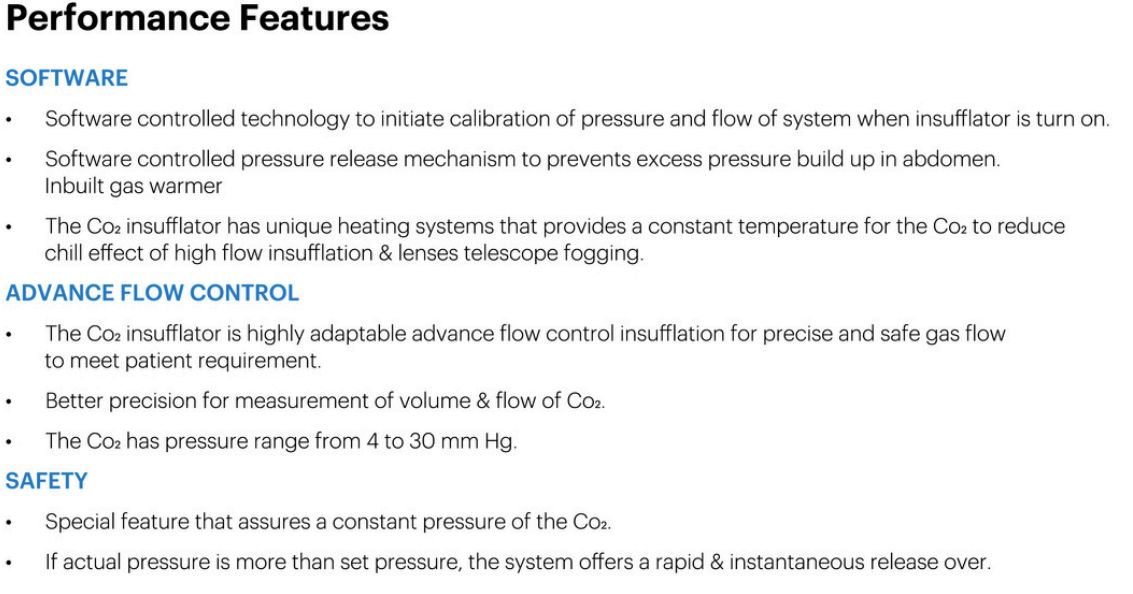

• Microcontroller-based closed-loop control system
• Accurate pressure and flow regulation
• Digital display for real-time monitoring
• Gas flow up to 30L / 40L per minute
• Integrated gas warmer (advanced models)
• Air mode functionality (selected models)
• User-friendly interface and operation

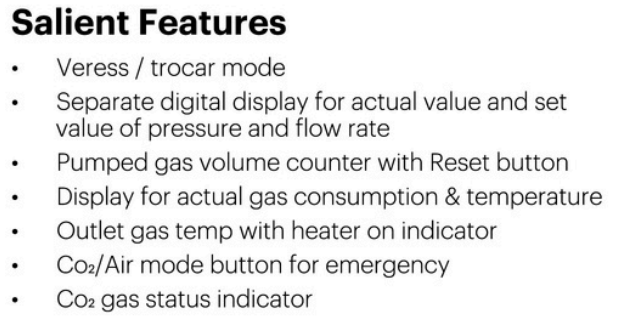

Salient Features

• Separate display for actual and set pressure & flow
• Pumped gas volume counter with reset
• CO₂ gas consumption and temperature display
• CO₂ / Air mode emergency switch
• Veress / trocar mode support
• CO₂ gas status indicator

Safety Features

• Over-pressure alarm and release system
• Stable pressure maintenance system
• Controlled gas flow for consistent performance
• Built-in safety mechanisms for reliable operation

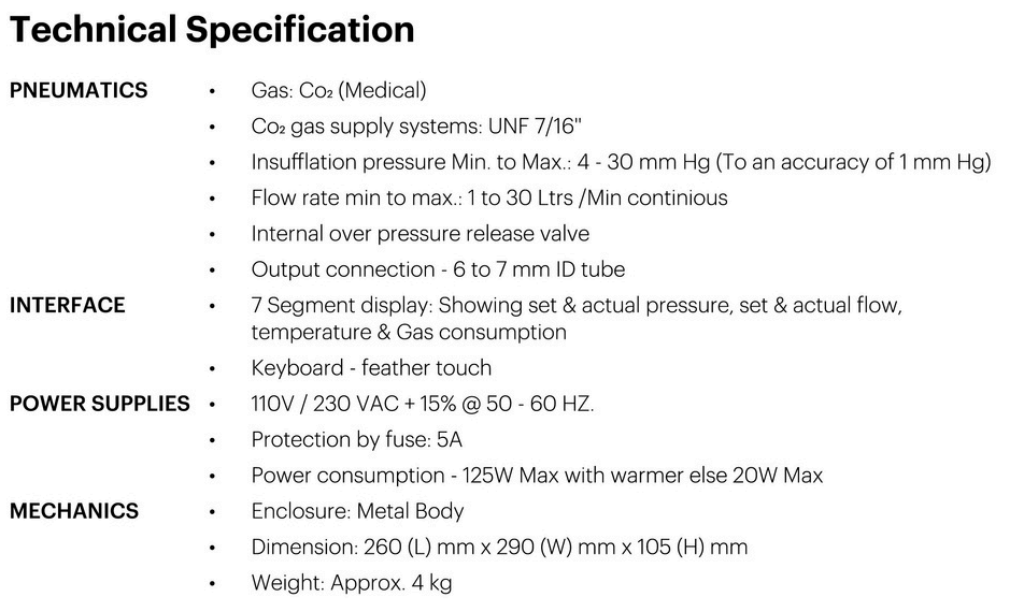

Technical Specifications

1. Gas Type: Medical CO₂
2. Flow Rate: Up to 30 / 40 L/min
3. Pressure Range: 4 – 30 mmHg
4. Display: Digital (set & actual values)
5. Power Supply: 110V / 230V AC, 50–60 Hz
6. Consumption: Up to 125W (with warmer)
7. Dimensions: 260 × 290 × 105 mm
8. Weight: Approx. 4 kg
9. Warranty: 1 Year

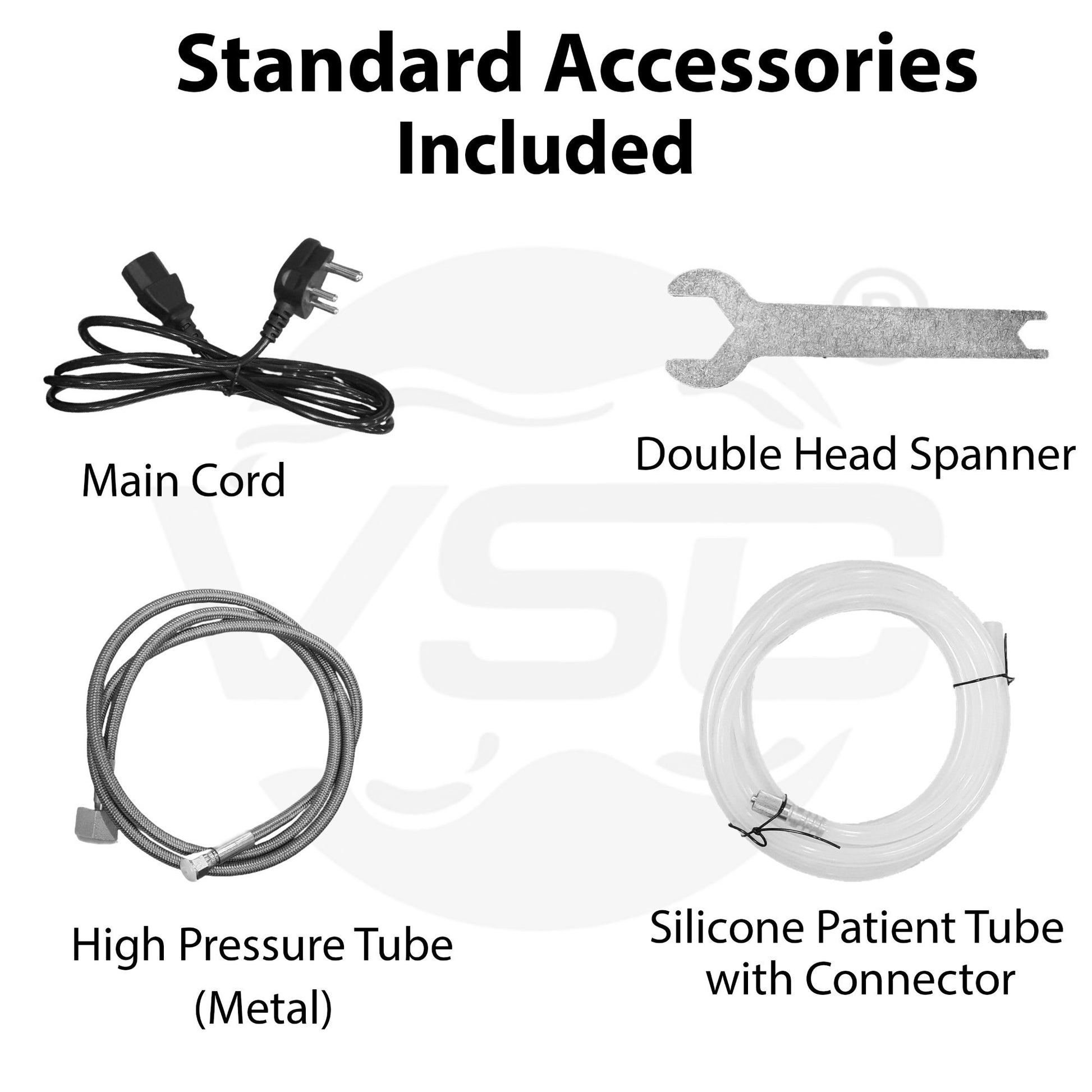

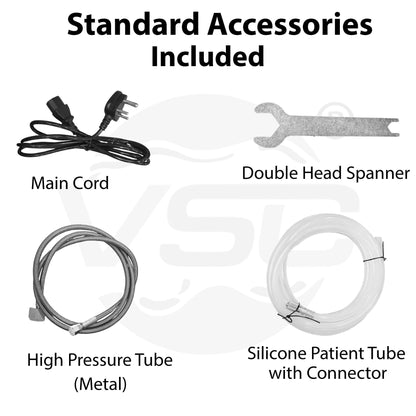

Standard Accessories

1. Mains power cord
2. Silicone patient tube with connector
3. High-pressure metal tube
4. Double head spanner
