Product Description

The Electrosurgical Generator Unit is a high-performance cautery system designed for precise cutting and coagulation across a wide range of surgical applications. Available in both analog and digital models with 300W and 400W power options, this unit offers flexible configurations to suit different clinical requirements.

The digital models are equipped with microprocessor-based control, multiple programmable modes, and LED display for accurate output management. The analog models feature reliable dial-based control, offering simple operation and consistent performance.

With support for both monopolar and bipolar modes, the system delivers stable high-frequency output, ensuring controlled energy delivery and dependable functionality in professional environments.

Available Variations

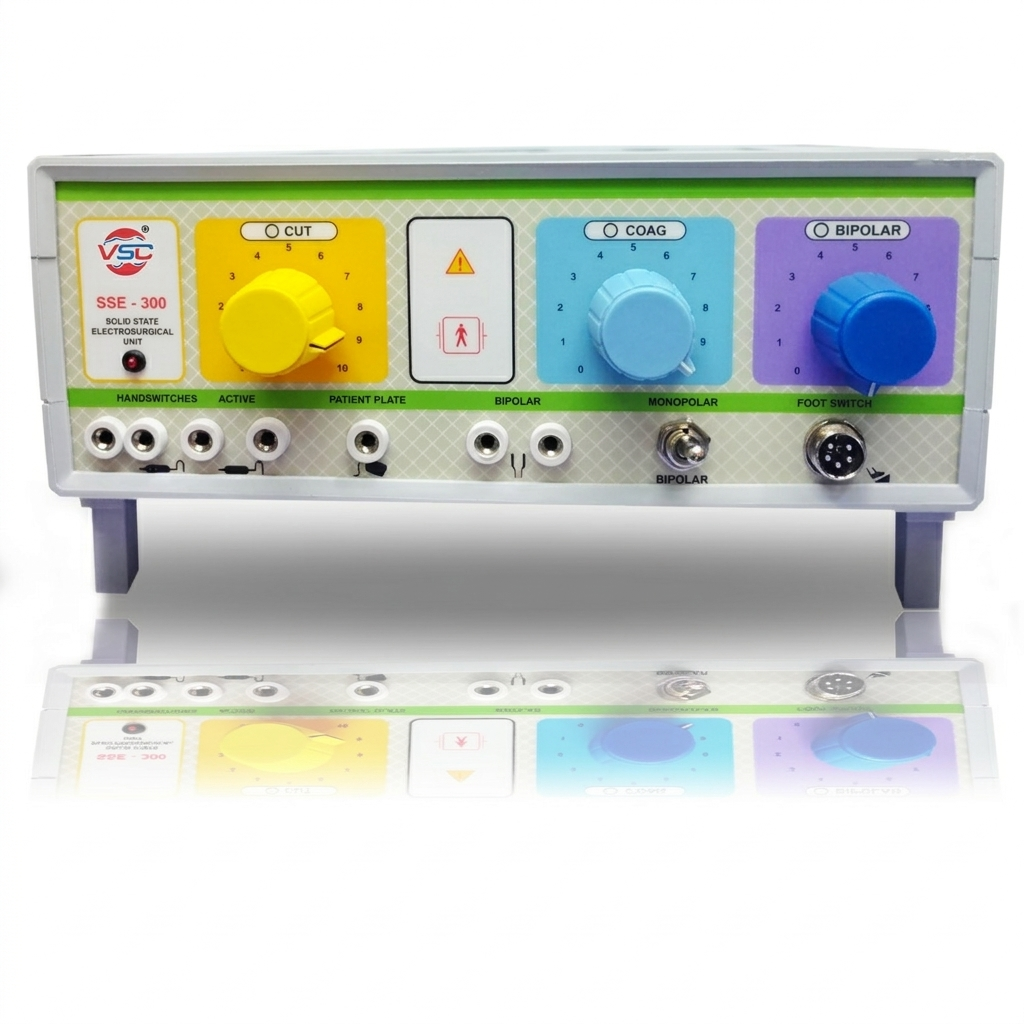

🔹 300W Analog Model

• Dial control (0–10 levels)
• Monopolar & bipolar functionality
• Compact and cost-effective
• Suitable for standard procedures

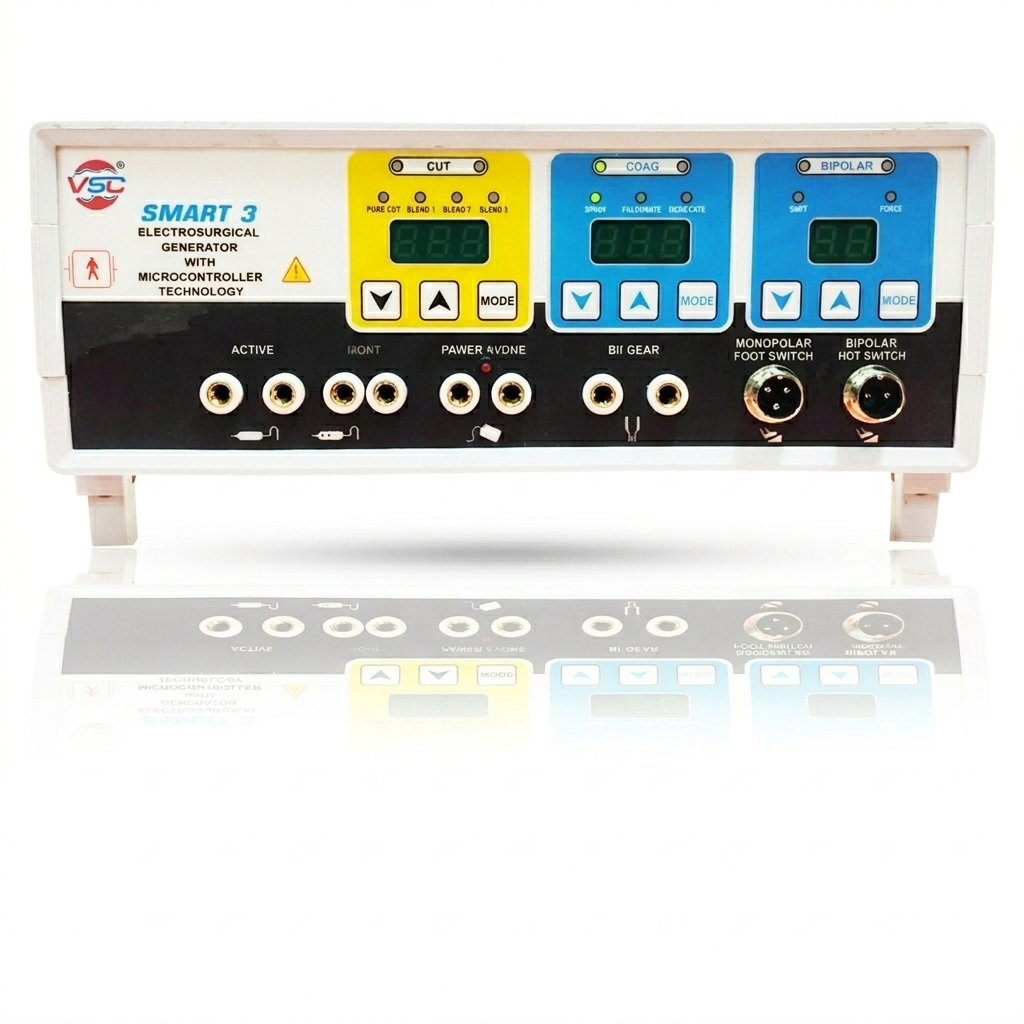

🔹 300W Digital Model

• Microprocessor-based system
• LED display with feather-touch controls
• Multiple programmable modes
• Enhanced precision and control

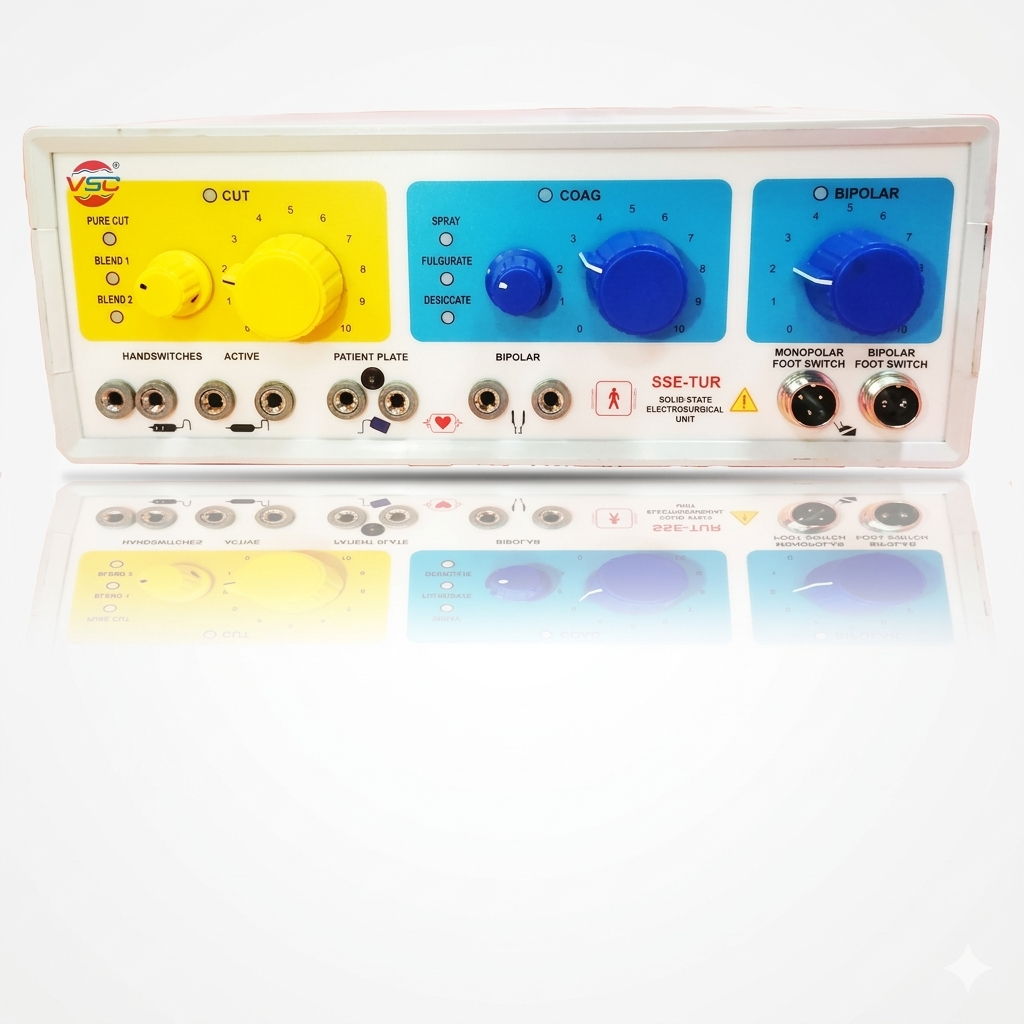

🔹 400W Analog Model

• Higher power output (400W)
• Dial-based operation
• Reliable and durable design
• Suitable for broader surgical use

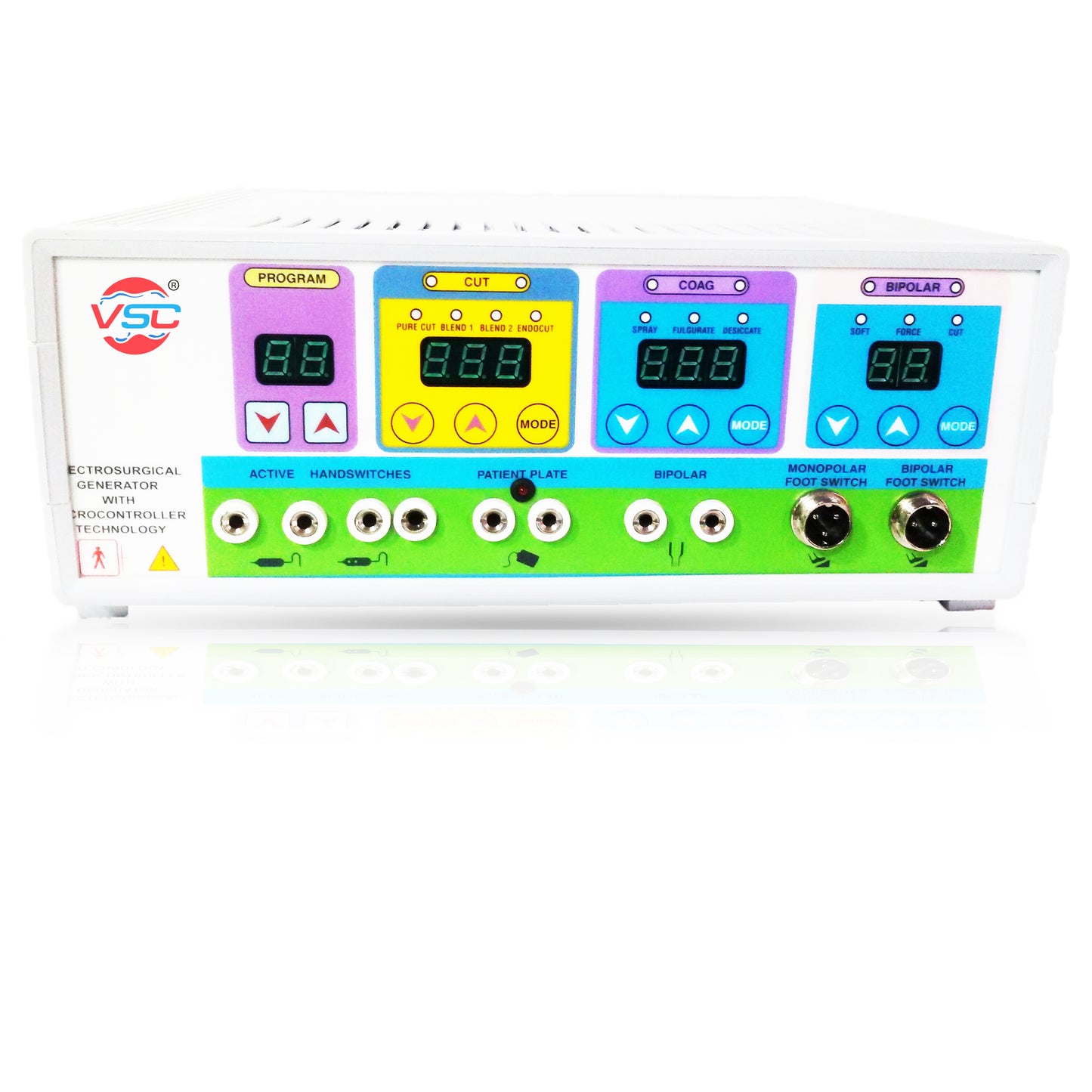

🔹 400W Digital Model

• Advanced microprocessor control
• Multiple cut, coag, and bipolar modes
• LED display with feather-touch keyboard
• High precision and stable output

Key Features

• Available in 300W and 400W configurations
• Analog (dial-based) and digital (microprocessor) options
• Monopolar and bipolar modes
• Stable operating frequency (480 kHz)
• Compact, user-friendly design

Operating Modes

MONOPOLAR CUT

• Pure Cut
• Blend Modes (1, 2, 3)
• Endocut (digital models)

COAGULATION

• Spray
• Fulgurate
• Desiccate

BIPOLAR MODE

• Soft
• Force
• Cut (digital models)

Salient Features

• 7 segment LED display (digital models)
• Feather-touch keyboard (digital)
• Dial control (analog models)
• Consistent power output across modes
• Lightweight and compact (approx. 4 kg)

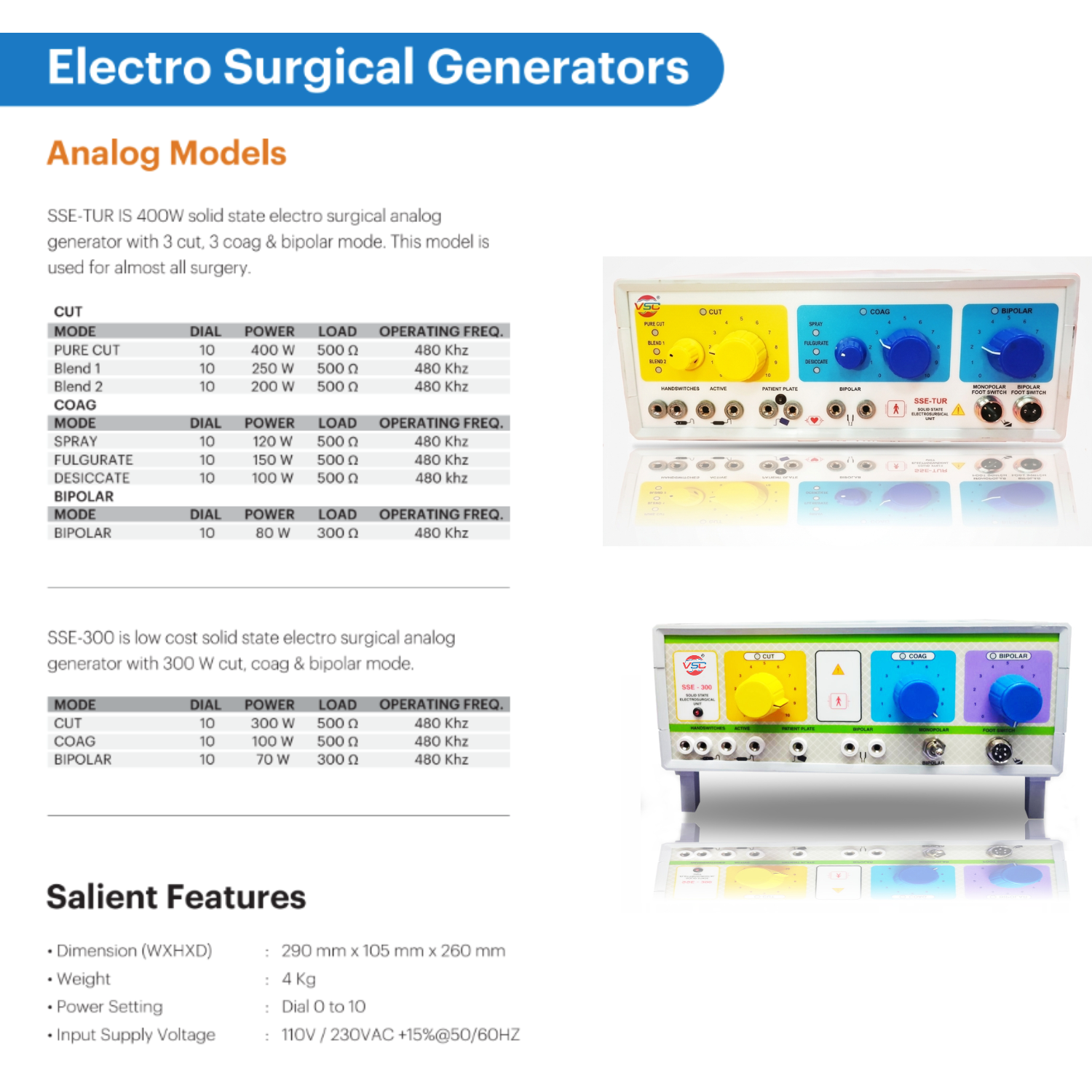

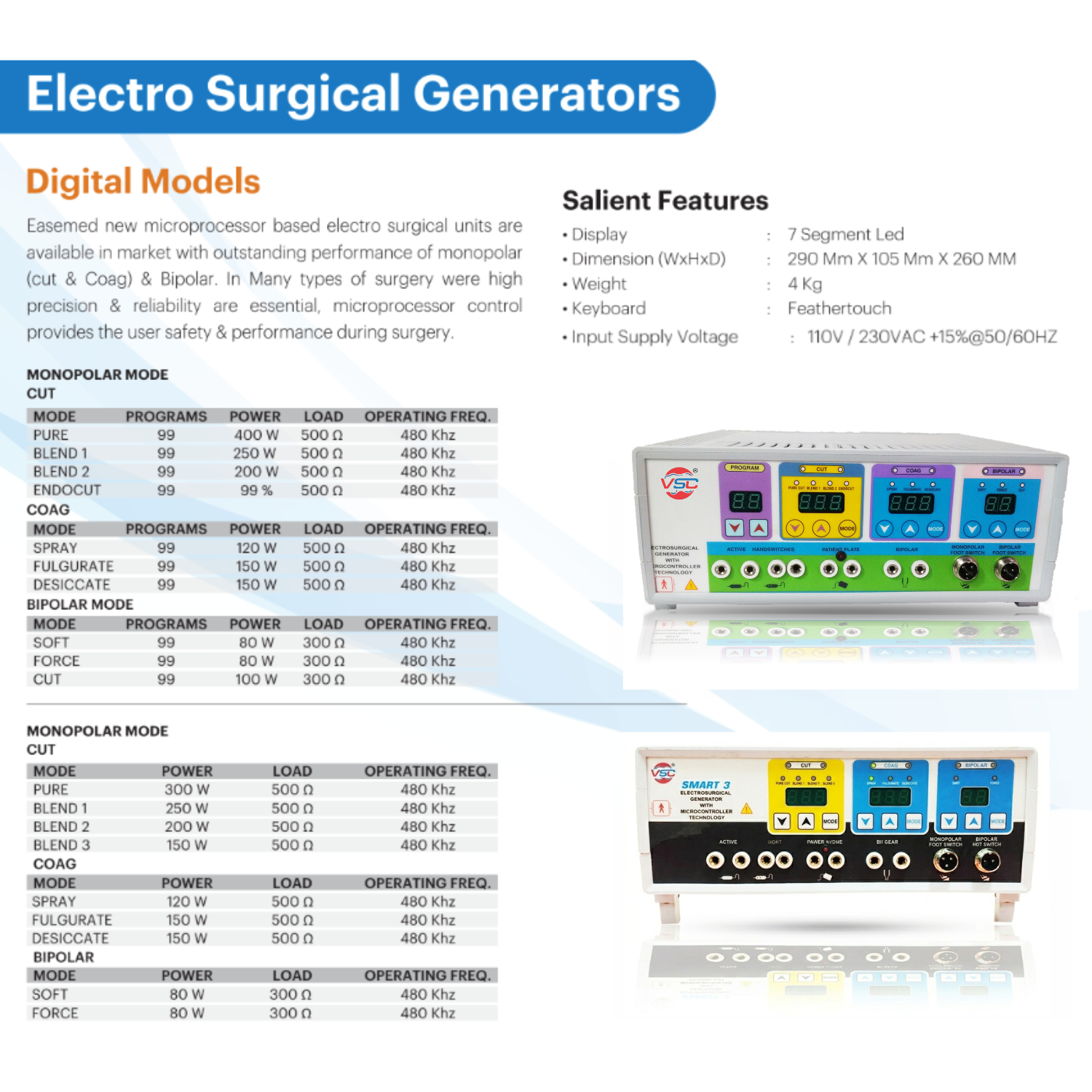

Technical Specifications

1. Power Output: 300W / 400W
2. Frequency: 480 kHz
3. Input Voltage: 110V / 230V AC ±15%, 50/60 Hz
4. Dimensions (W×H×D): 290 × 105 × 260 mm
5. Weight: Approx. 4 kg
6. Control Type: Analog / Digital
7. Display: LED (Digital Models)
8. Warranty: 1 Year

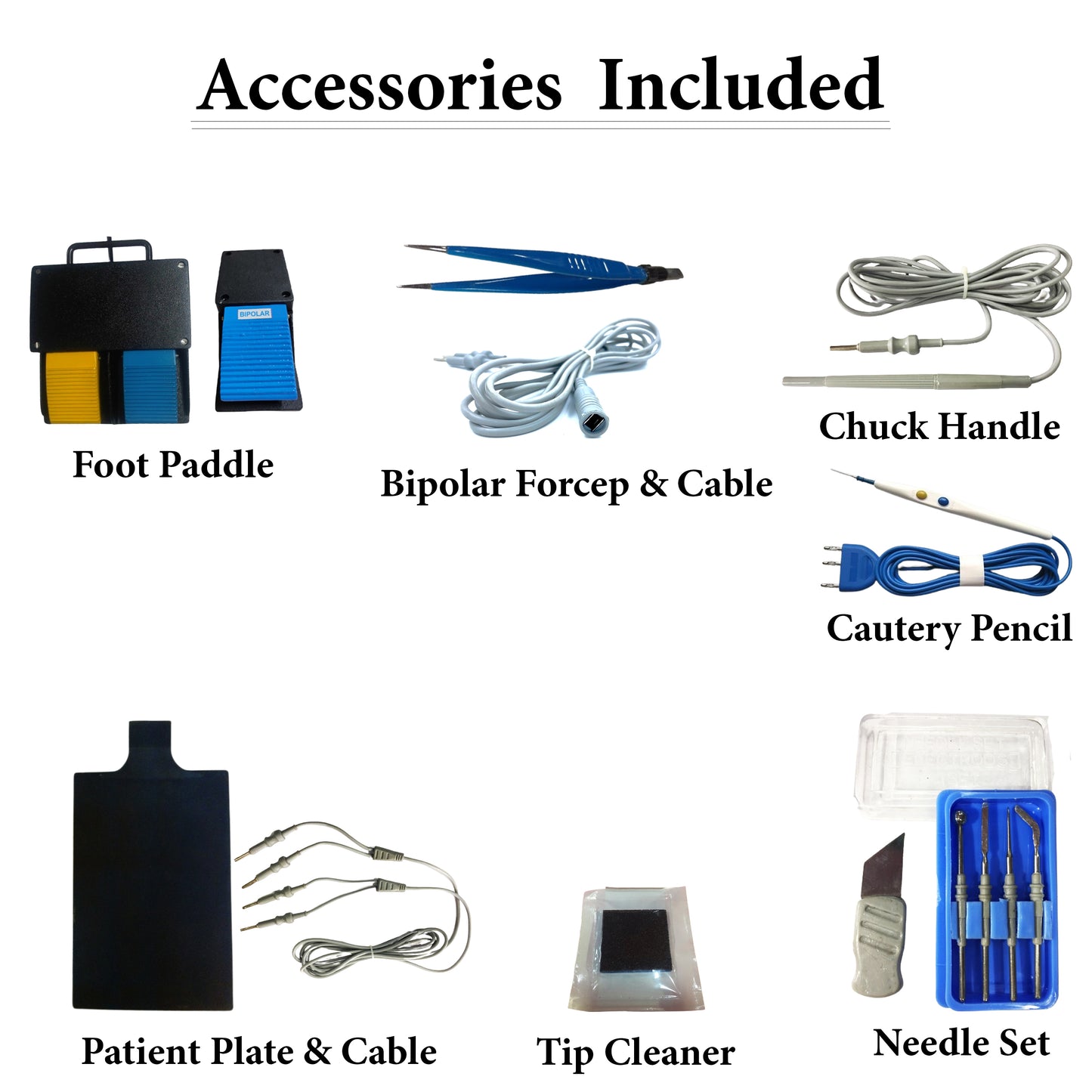

Accessories Included

1. Foot paddle
2. Bipolar forceps with cable
3. Patient plate with cable
4. Cautery pencil
5. Chuck handle
6. Needle set
7. Tip cleaner
