Product Description

The Electrosurgical Generator Unit Cautery Machine with Vessel Sealing System and Bipolar Saline TURP is an advanced surgical system designed for precise cutting, coagulation, vessel sealing, and saline-based bipolar procedures.

This system integrates multiple energy delivery modes, enabling controlled performance across a wide range of surgical applications. It combines monopolar, bipolar, vessel sealing, and saline TURP functionality in a single unit, ensuring flexibility and efficiency in clinical environments.

The vessel sealing technology utilizes a controlled combination of pressure and energy to achieve consistent sealing performance. The bipolar saline TURP function supports procedures using saline irrigation, enhancing operational safety and efficiency.

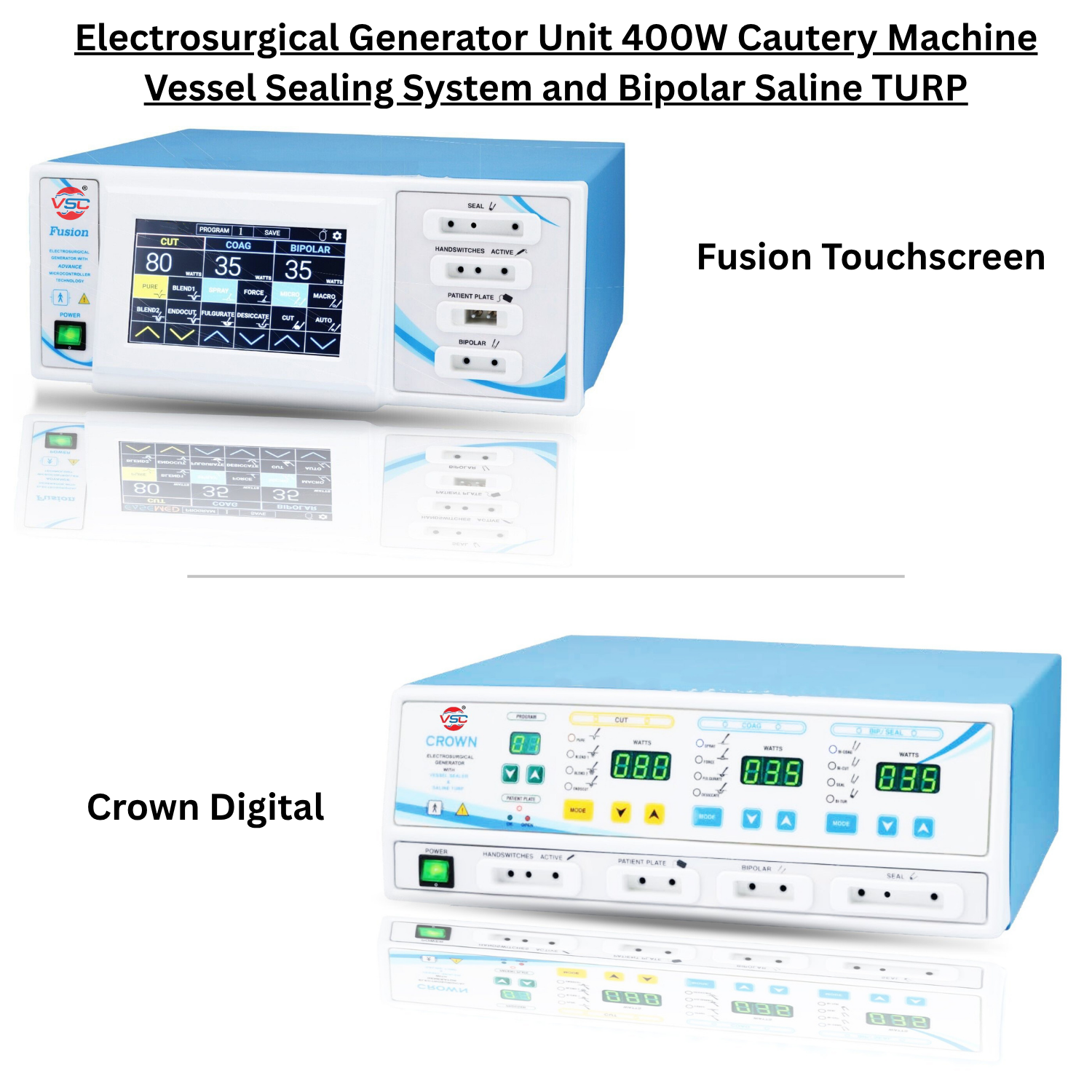

Available Variations

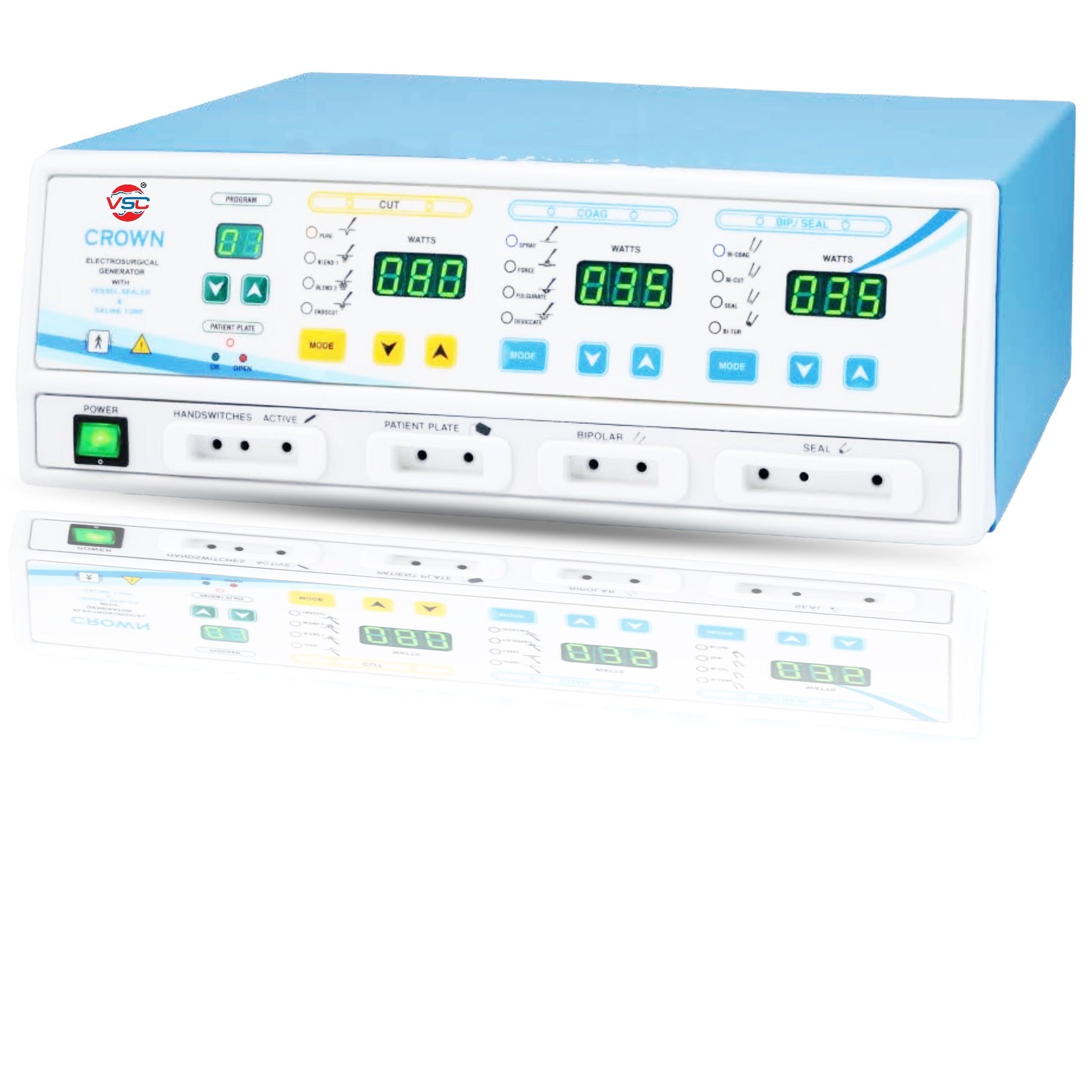

🔹 Crown Digital

• Digital interface with LED display
• User-friendly control panel
• Reliable and stable performance
• Cost-effective solution for general surgical use

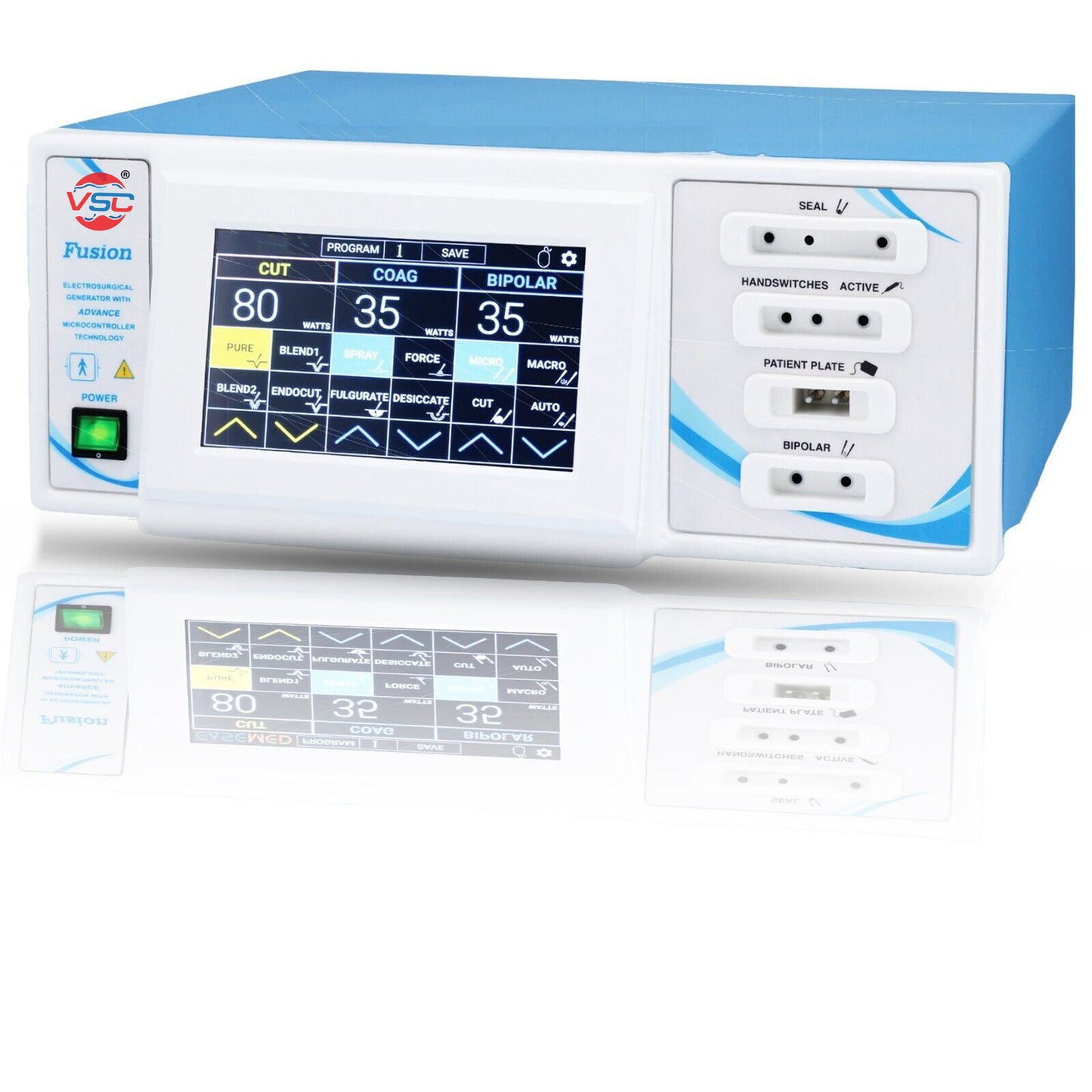

🔹 Fusion Touchscreen

• Advanced 7-inch LCD touchscreen display
• 99 programmable user modes
• Enhanced control and precision
• Modern interface for efficient operation

Key Features

• Integrated monopolar, bipolar, vessel sealing & saline TURP functions
• Advanced vessel sealing technology
• Bipolar saline TURP compatibility
• Multiple modes: Cut, Blend, Coagulation, Bipolar & Seal
• Stable high-frequency output
• User-settable programs for customized operation

Operating Modes

CUT MODE

• Pure Cut
• Blend 1 & Blend 2
• Endocut

COAG MODE

• Spray
• Force
• Fulgurate
• Desiccate

BIPOLAR & SEAL

• Bi-Coag / Micro
• Bi-Cut / Macro
• Seal Mode (pressure + energy combination)
• Auto Mode

SALINE TURP MODE

• Saline Cut
• Saline Coagulation

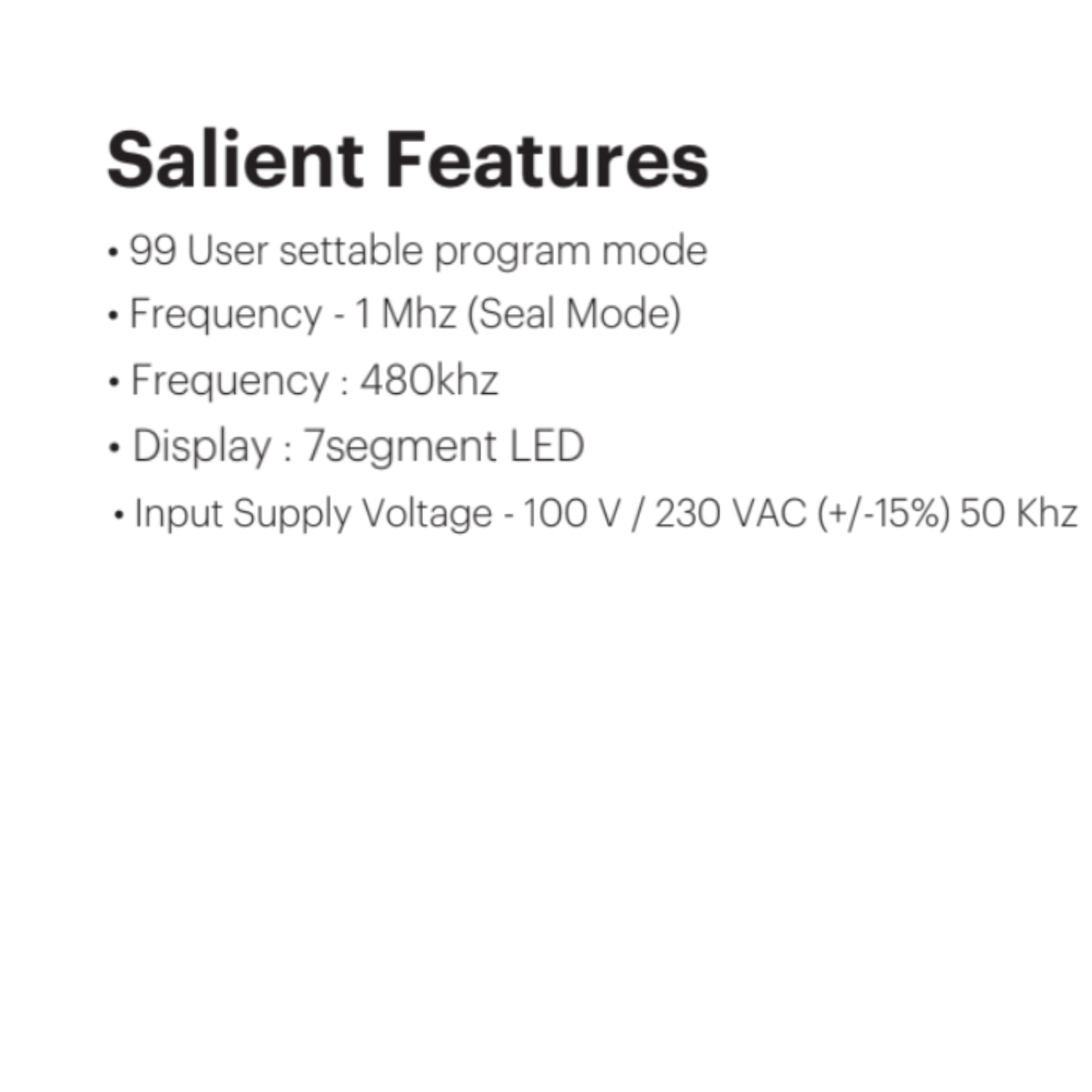

Salient Features

• Vessel sealing capability for controlled performance
• Bipolar TURP function with saline compatibility
• Frequency: 480 kHz (Monopolar/TURP)
• Frequency: 1 MHz (Seal Mode)
• 99 programmable modes (Fusion model)
• LED display (Crown) / Touchscreen (Fusion)
• Compact and durable design

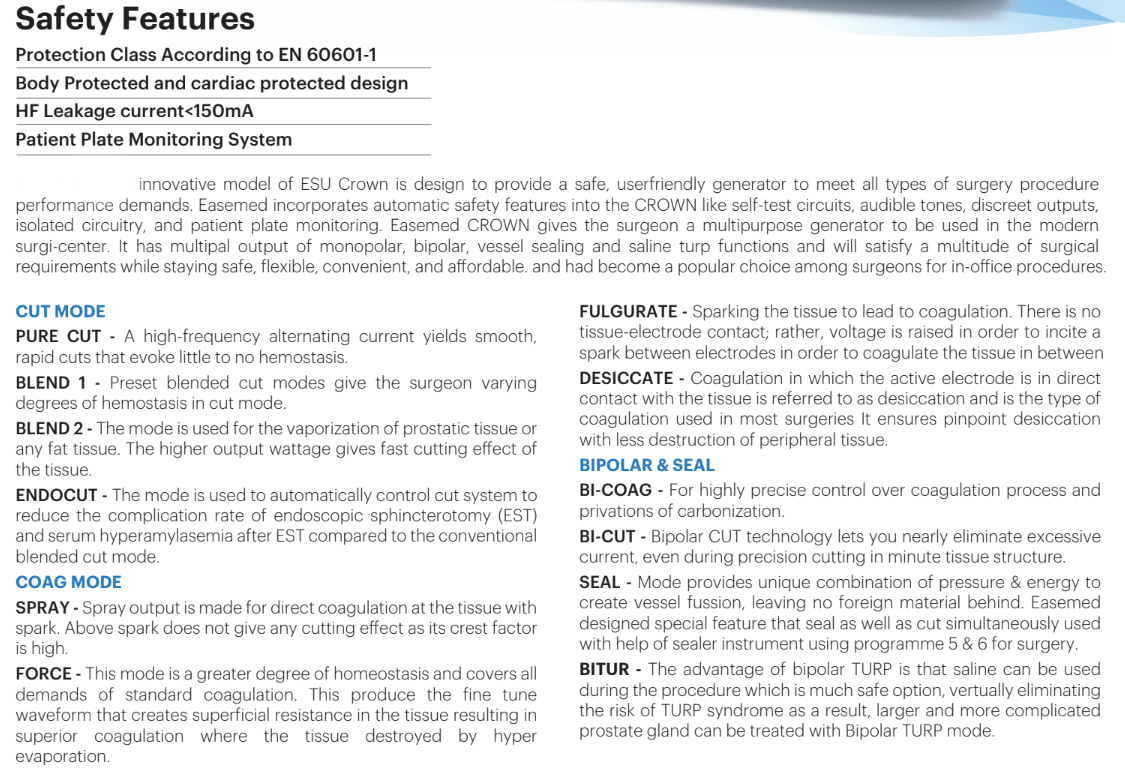

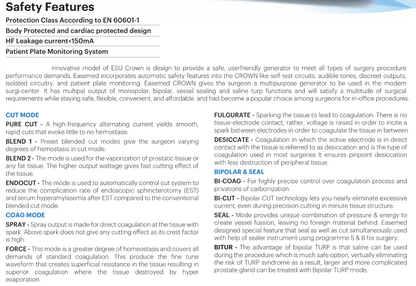

Safety Features

• Protection class as per EN 60601-1
• Body and cardiac protected design
• HF leakage current <150 mA
• Patient plate monitoring system

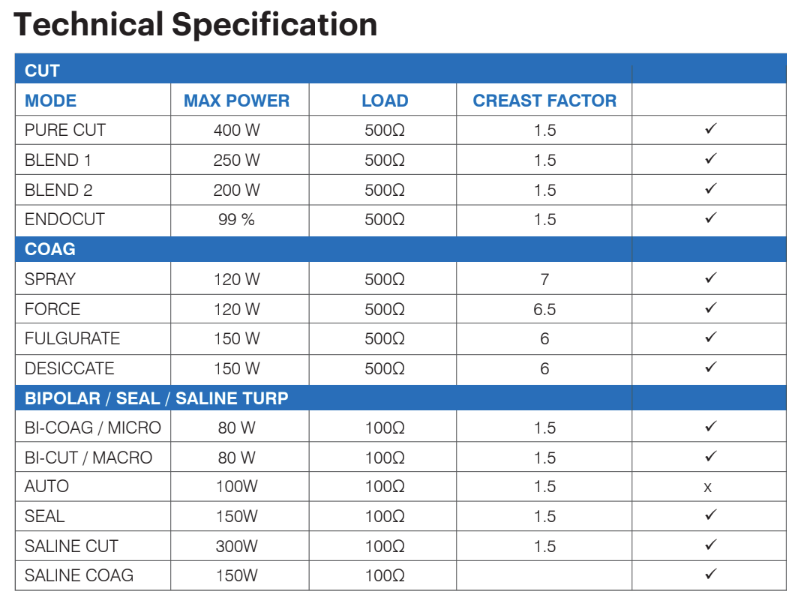

Technical Specifications

1. Power Output: Up to 400W
2. Input Voltage: 100V / 230V AC (±15%), 50 Hz
3. Frequency: 480 kHz / 1 MHz
4. Display: LED / Touchscreen (model-based)
5. Output Modes: Monopolar / Bipolar / Seal / TURP
6. Warranty: 1 Year

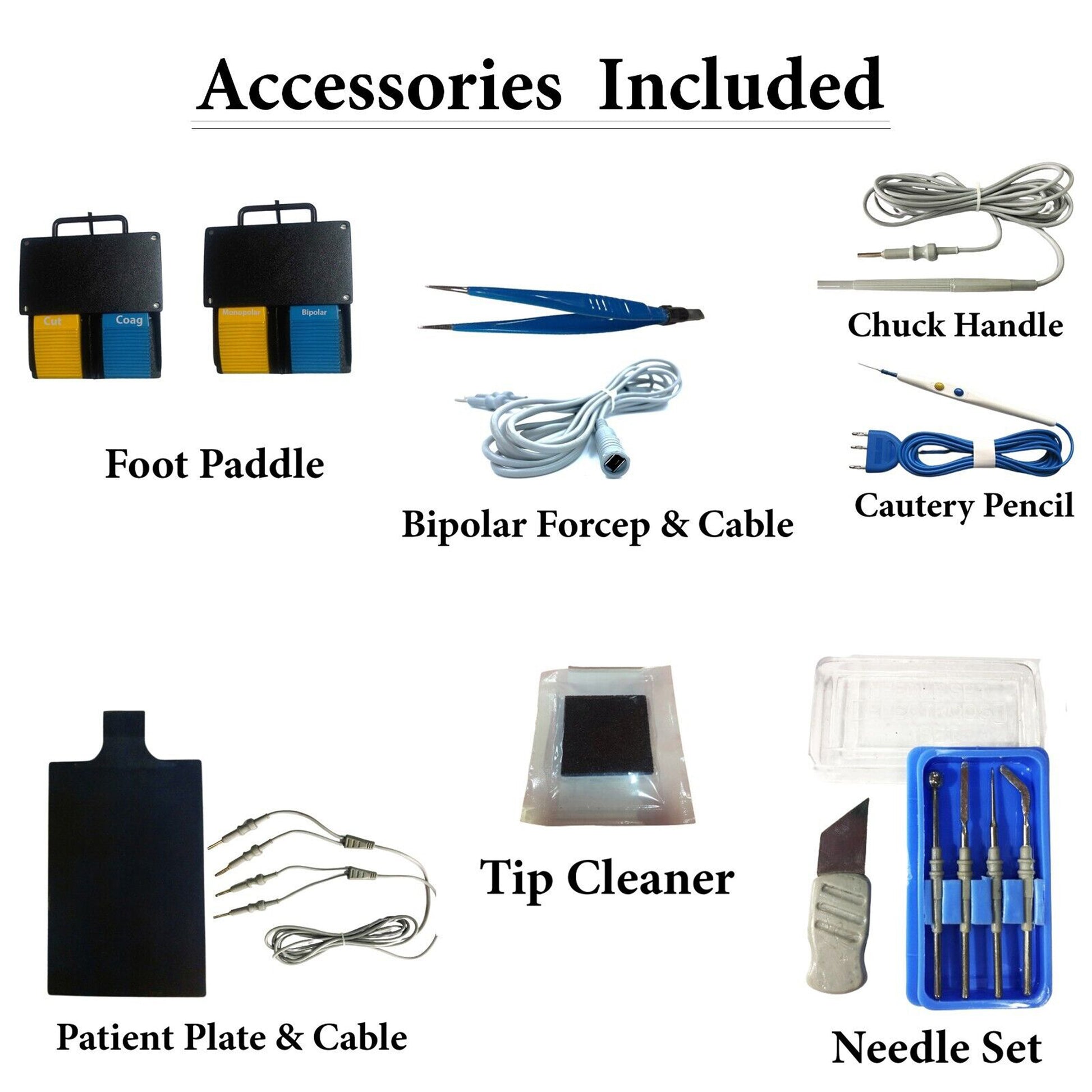

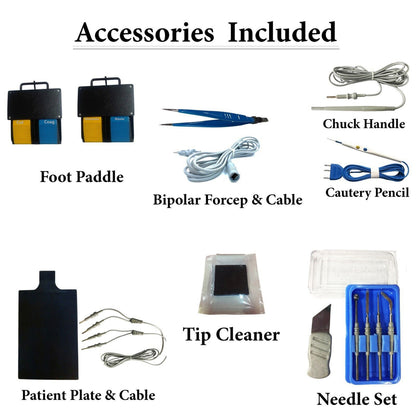

Standard Accessories

1. Bipolar forceps with cable
2. Monopolar / bipolar / seal double pedal foot switch
3. Disposable hand switch pencil
4. Silicon patient plate with cord
5. Chuck handle with electrodes
