Product Description

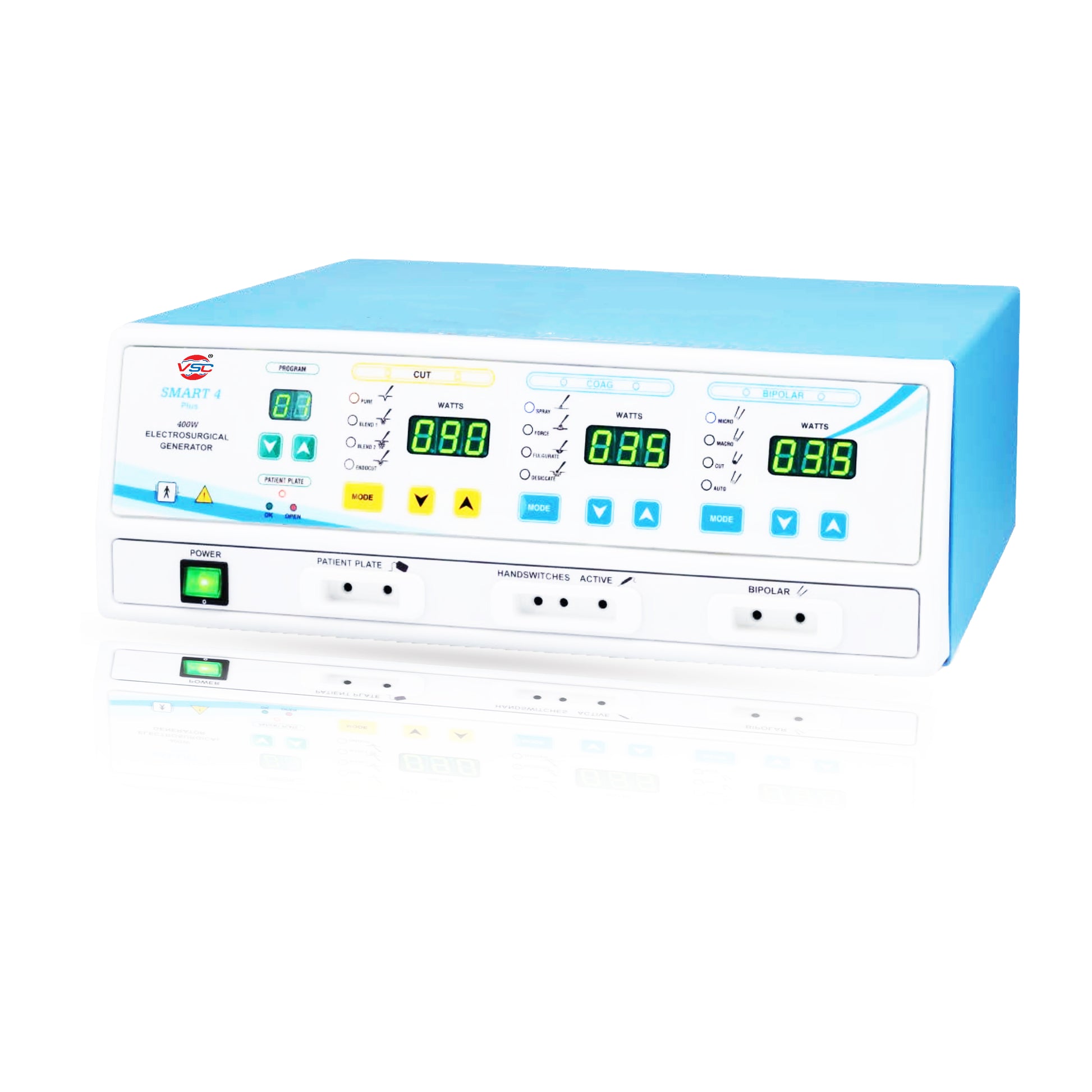

The Smart 4 Plus Advanced Electrosurgical Generator Unit 400W is a high-performance cautery system designed for precise cutting and coagulation in surgical applications. It offers multiple operating modes, adjustable power settings, and stable output for consistent performance.

This unit supports monopolar and bipolar functions, providing flexibility across various surgical requirements. Its compact design, digital interface, and programmable settings allow efficient operation in clinical environments.

Key Features

• 400W high-performance electrosurgical output

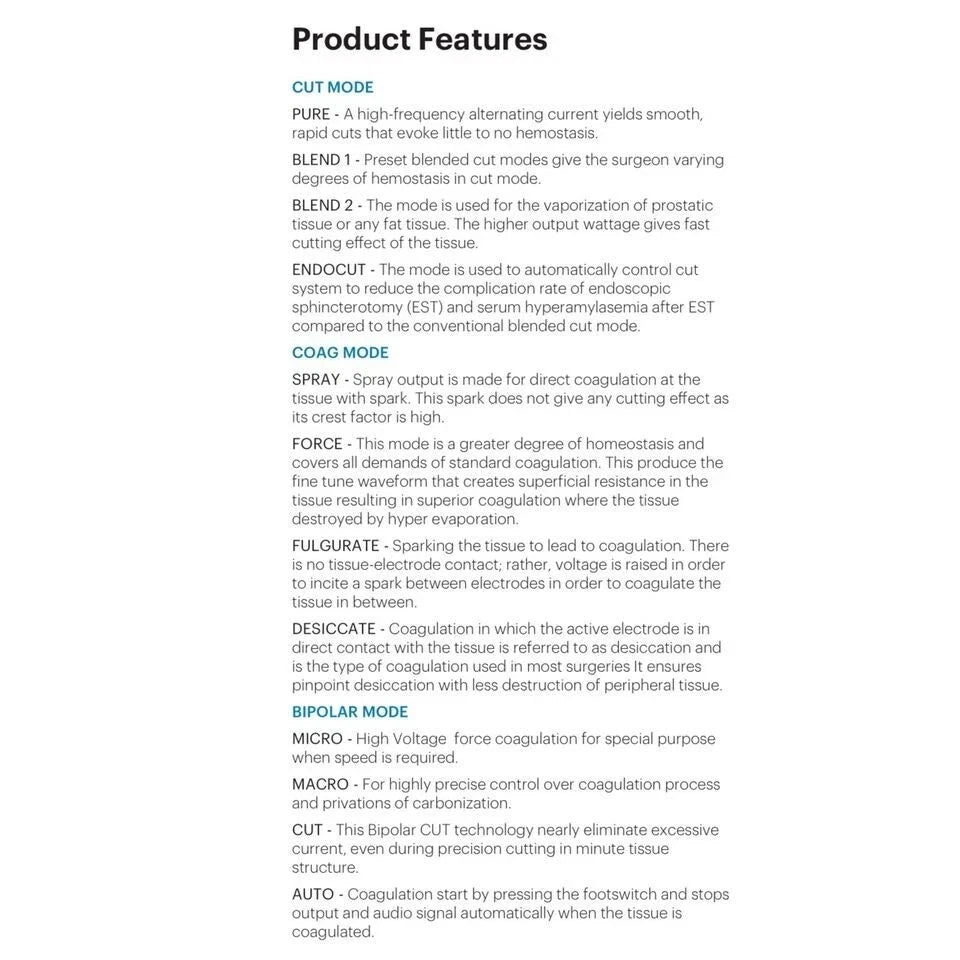

• Multiple modes: Cut, Blend, Coagulation, Bipolar
• Digital display with user-settable programs
• Monopolar and bipolar compatibility
• Compact and durable design

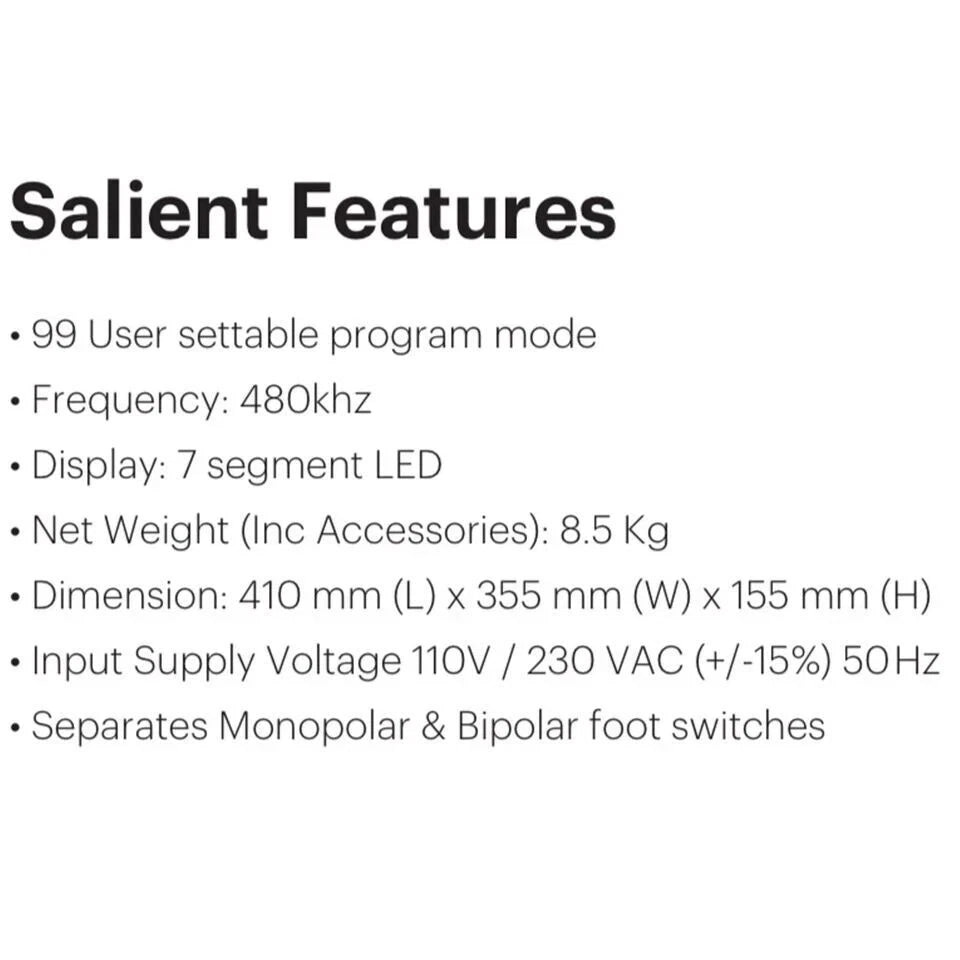

Salient Features

• 99 user-settable program modes
• Frequency: 480 kHz
• LED display system
• Separate monopolar & bipolar foot switch support
• Stable and consistent power output

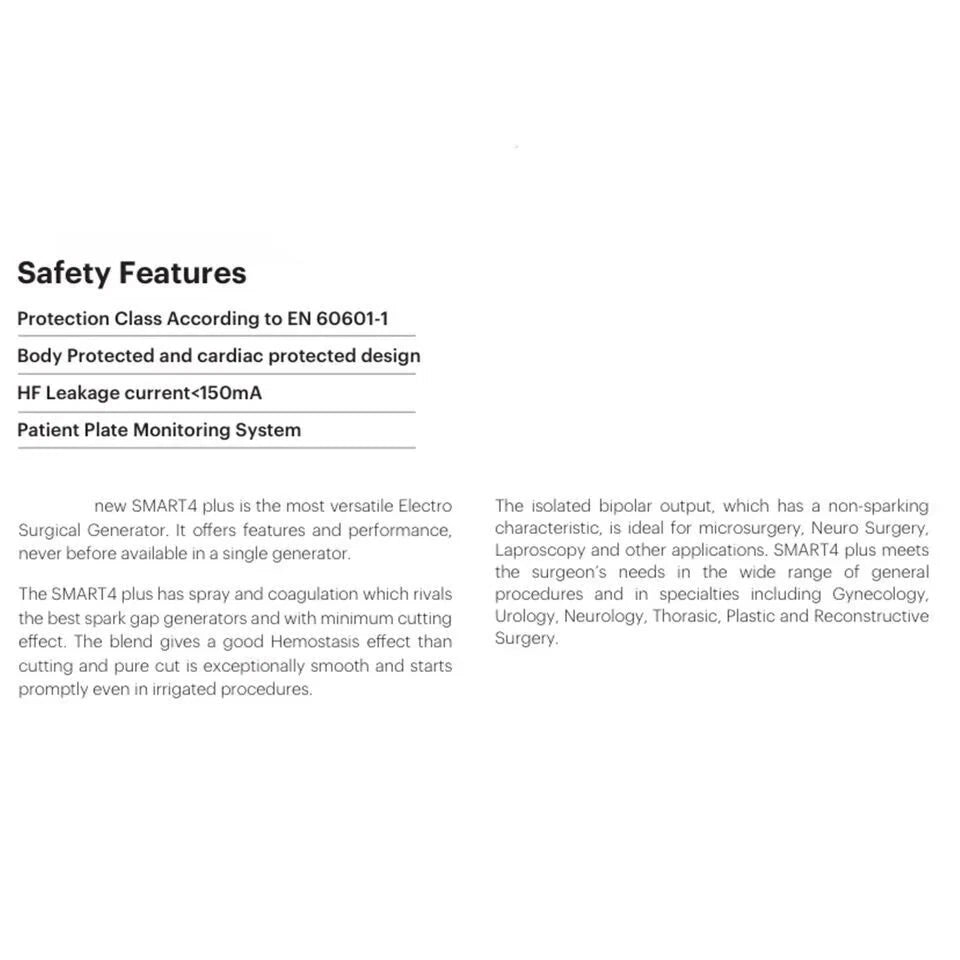

Safety Features

• Protection class as per EN 60601-1
• Body and cardiac protection design
• HF leakage current <150 mA
• Patient plate monitoring system

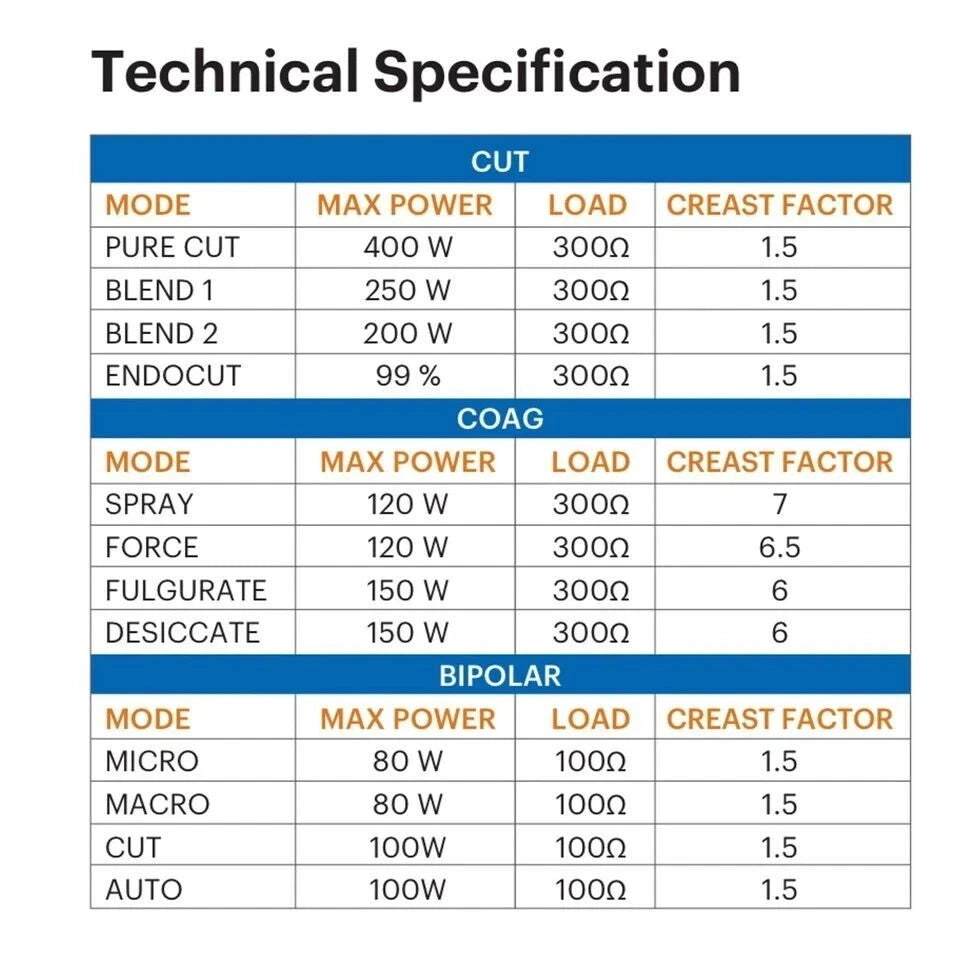

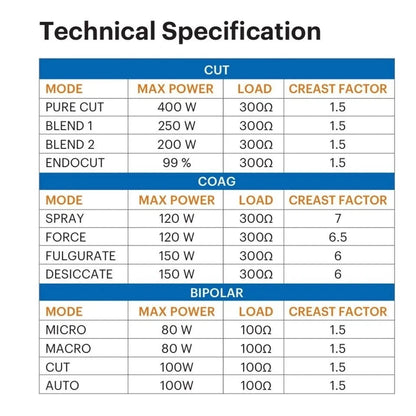

Technical Specifications

1. Power Supply: 110V / 230V AC, 50–60 Hz
2. Power Consumption: 60 VA
3. Maximum Power: 400W
4. Frequency: 480 kHz
5. Speed Range: 10 – 1000 rpm (if applicable module)
6. Display: LED Digital
7. Modes: Cut / Blend / Coag / Bipolar
8. Dimensions: 410 × 355 × 155 mm
9. Weight: Approx. 8.5 kg
10. Warranty: 1 Year

Accessories Included

1. Foot paddle
2. Bipolar forceps with cable
3. Patient plate with cable
4. Cautery pencil
5. Chuck handle
6. Needle set
7. Tip cleaner
