Product Description

The Electrosurgical Generator with Vessel Sealing System is an advanced surgical unit designed to deliver precise cutting, coagulation, and vessel sealing performance in both minimally invasive and open surgical applications.

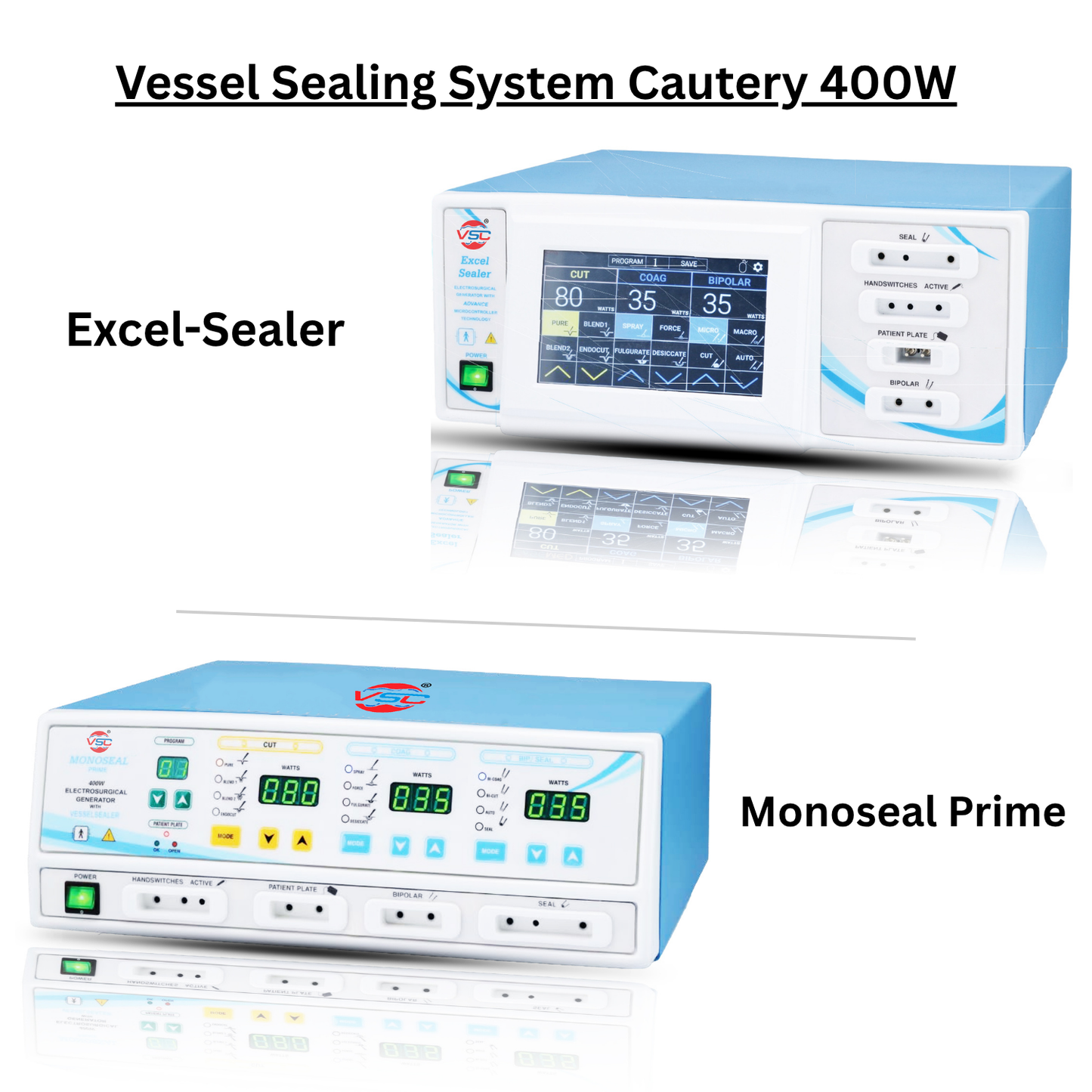

Available in two models — Monoseal Prime Digital and Excel Sealer Touchscreen — this system combines controlled energy delivery with tissue compression technology to achieve efficient vessel sealing and surgical precision.

The integrated vessel sealing technology enables fusion of vessels up to 7 mm in diameter through a controlled combination of pressure and energy. This system is engineered to provide consistent output, minimal thermal spread, and reliable performance in clinical environments.

Available Variations

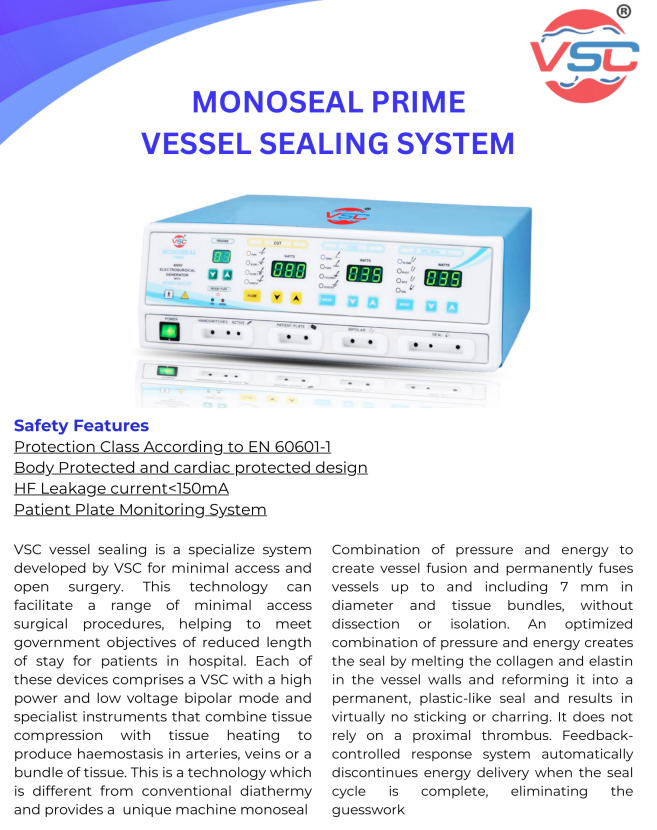

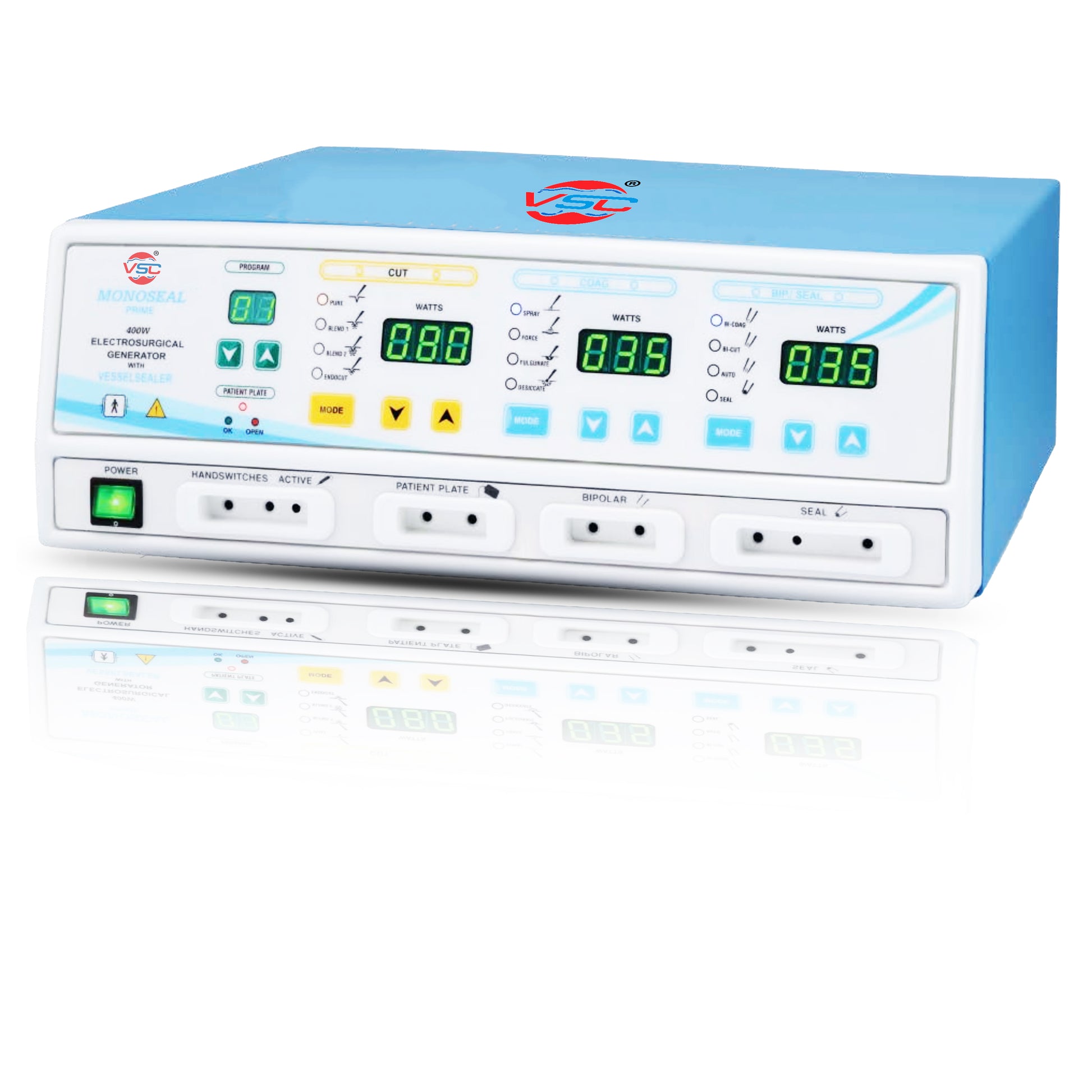

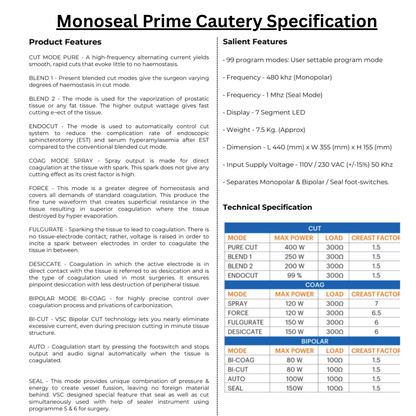

🔹 Monoseal Prime Digital

• Digital control interface
• LED display system
• Reliable performance with standard controls
• Suitable for general surgical applications

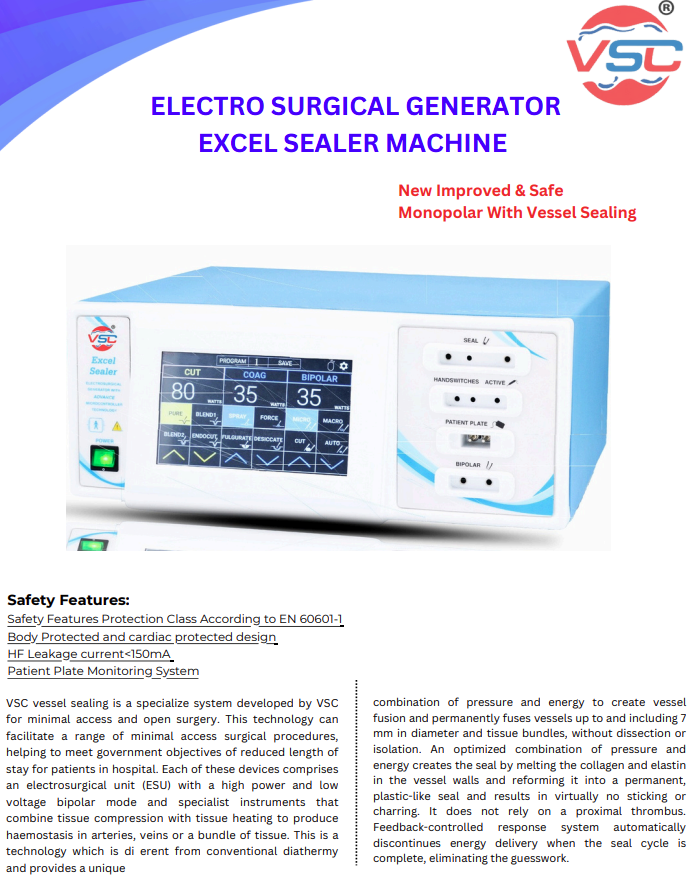

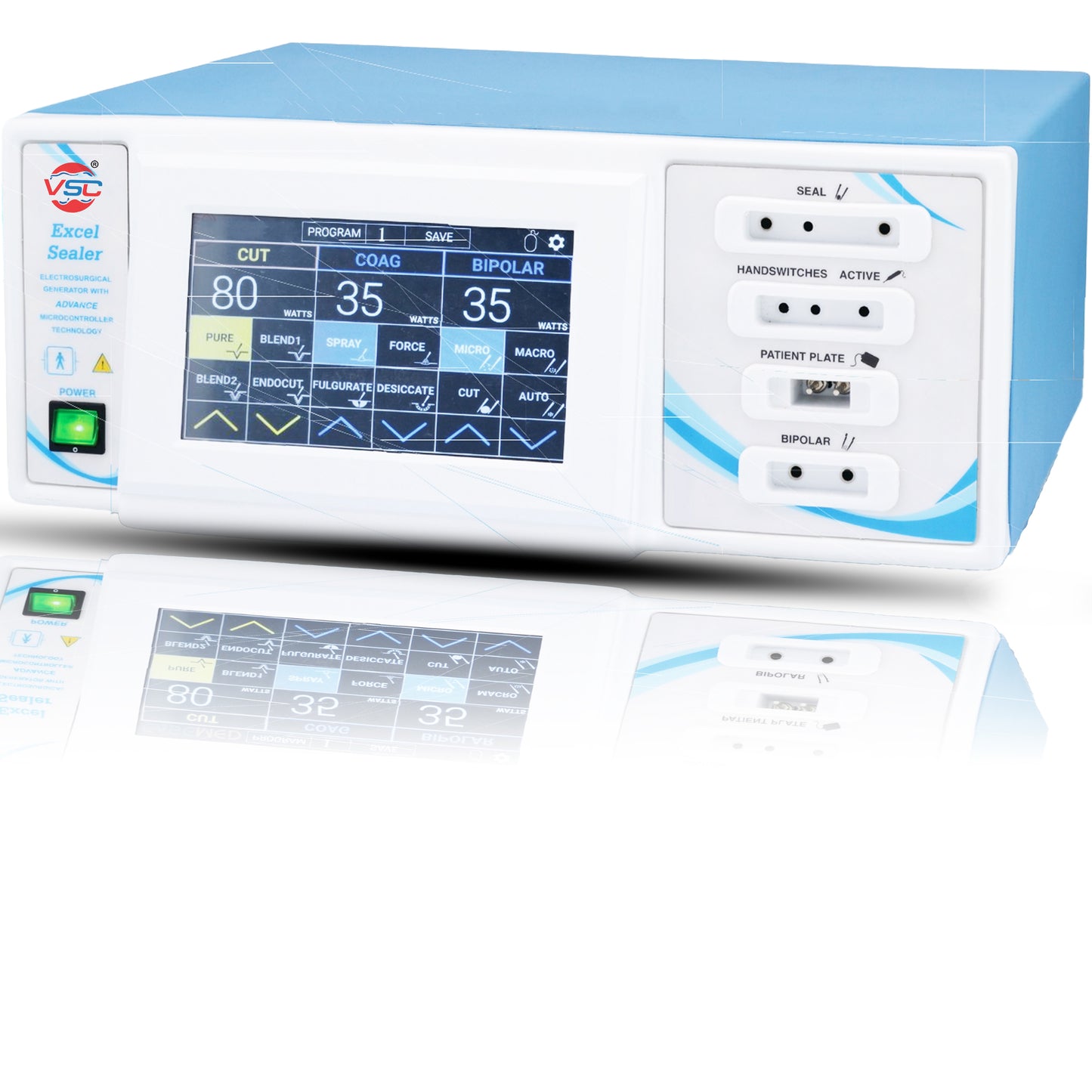

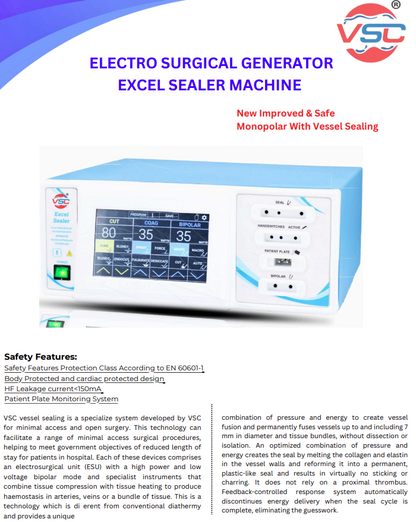

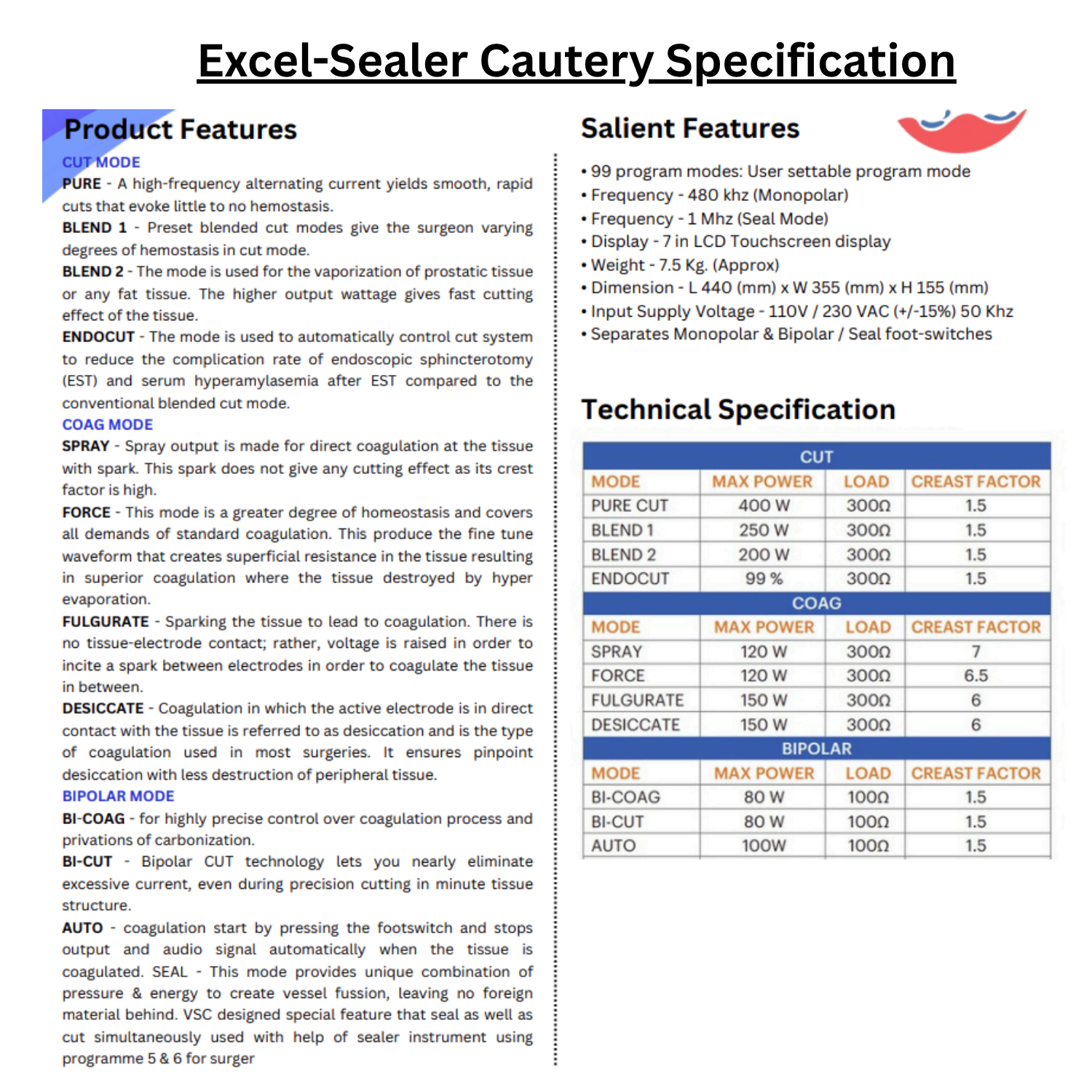

🔹 Excel Sealer Touchscreen

• Advanced touchscreen interface (7-inch LCD)
• 99 programmable user modes
• Enhanced control and customization
• Modern user-friendly design

Key Features

• Advanced vessel sealing technology (up to 7 mm)
• Monopolar and bipolar functionality
• Multiple modes: Cut, Blend, Coagulation, Bipolar & Seal
• Feedback-controlled energy delivery system
• Stable high-frequency output
• Minimal sticking and optimized sealing performance

Operating Modes

CUT MODE

• Pure Cut
• Blend 1 & Blend 2
• Endocut

COAG MODE

• Spray
• Force
• Fulgurate
• Desiccate

BIPOLAR MODE

• Bi-Coag
• Bi-Cut
• Auto

SEAL MODE

• Vessel sealing with pressure + energy combination

Salient Features

• Vessel sealing up to 7 mm diameter
• 99 user-settable program modes (Excel model)
• Frequency: 480 kHz (Monopolar) / 1 MHz (Seal Mode)
• LCD touchscreen (Excel) / LED display (Monoseal)
• Separate monopolar & bipolar / seal foot switch support
• Compact and durable design

Safety Features

• Protection class as per EN 60601-1
• Body and cardiac protection design
• HF leakage current <150 mA
• Patient plate monitoring system

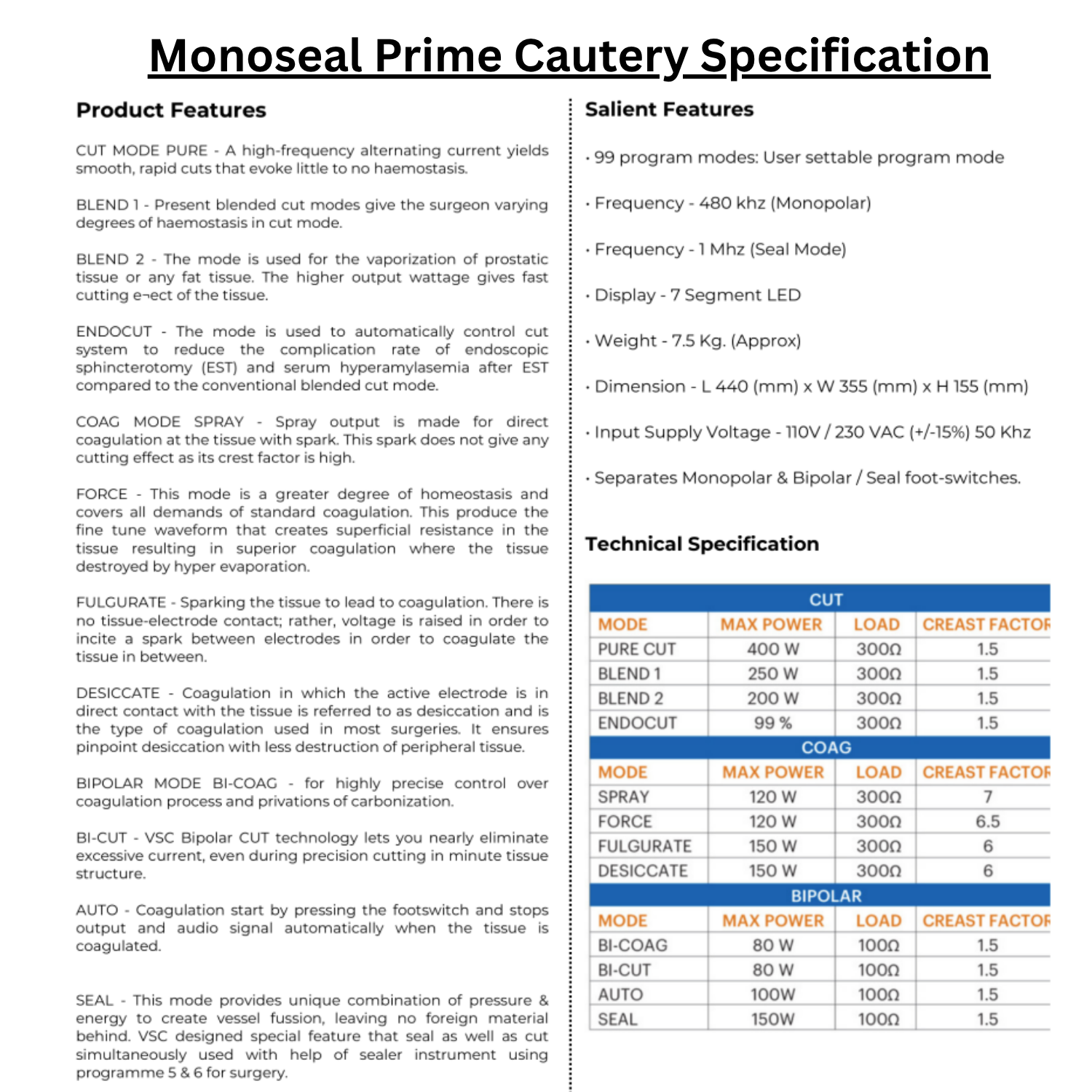

Technical Specifications

1. Power Output: Up to 400W
2. Input Voltage: 110V / 230V AC (±15%), 50 Hz
3. Frequency: 480 kHz / 1 MHz
4. Weight: Approx. 7.5 kg
5. Dimensions: 440 × 355 × 155 mm
6. Warranty: 1 Year

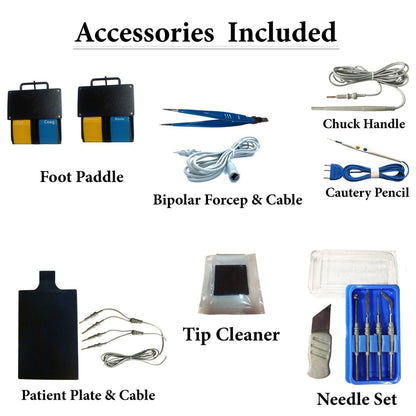

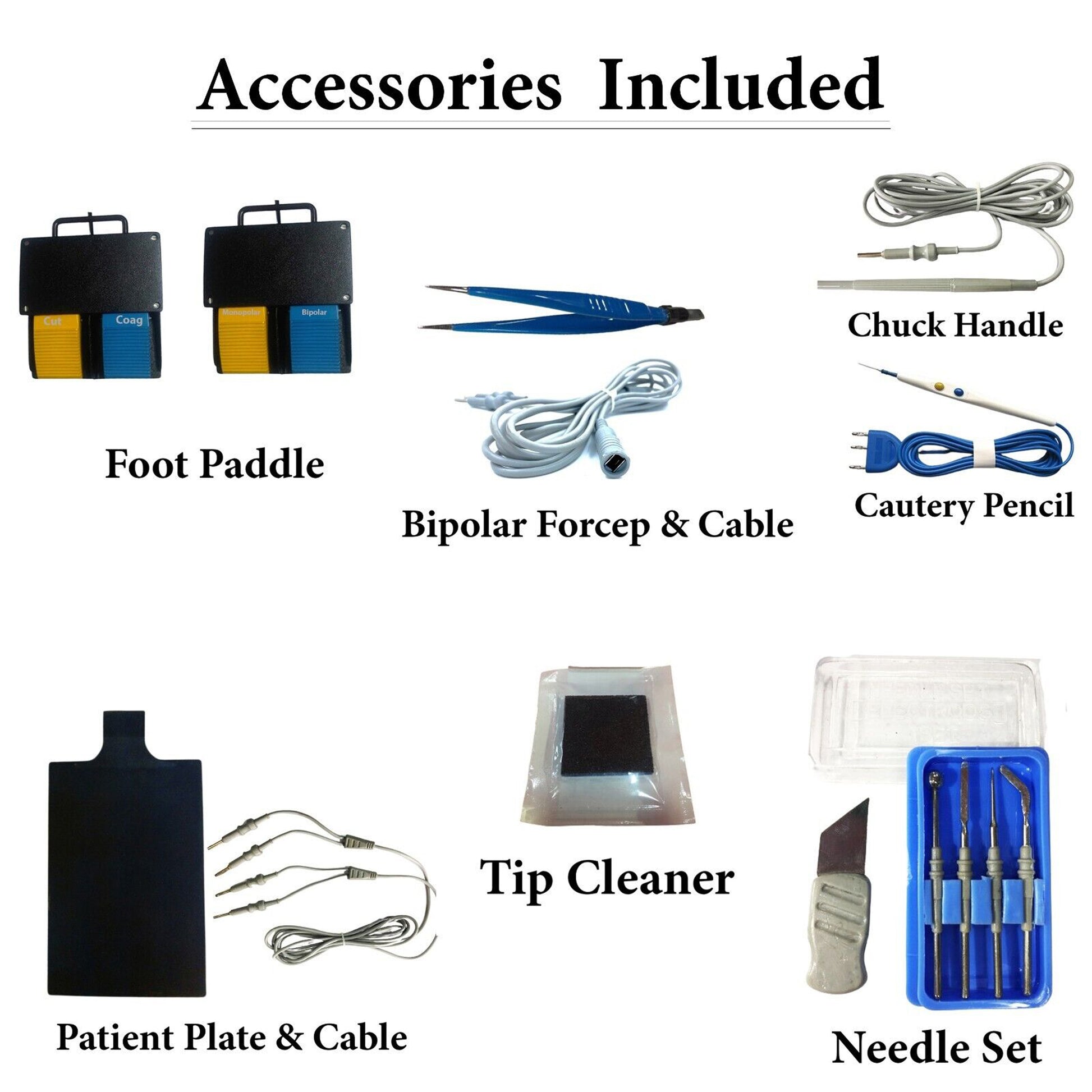

Standard Accessories

1. Bipolar forceps with cable
2. Monopolar / bipolar / seal foot switch
3. Patient plate with cable
4. Disposable hand switch pencil
5. Chuck handle with electrodes
