Product Description

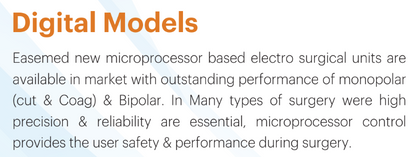

The Electrosurgical Generator Unit 250W is a microprocessor-based cautery system designed for precise cutting and coagulation in surgical applications. It delivers stable high-frequency output with controlled energy delivery for consistent performance.

This unit supports both monopolar and bipolar modes, allowing flexibility across various surgical procedures. Its digital control interface and feather-touch keyboard provide smooth operation and accurate parameter adjustment.

Engineered for reliability, the system ensures controlled output across multiple modes, making it suitable for professional clinical environments.

Key Features

• 250W electrosurgical output for precise performance
• Monopolar and bipolar functionality
• Microprocessor-controlled system
• Feather-touch control panel
• Compact and user-friendly design

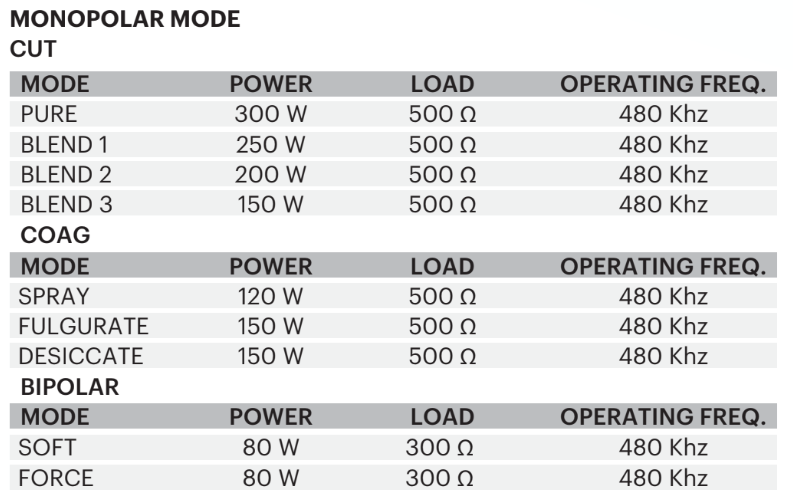

Operating Modes

MONOPOLAR CUT

• Pure Cut – 300W
• Blend 1 – 250W
• Blend 2 – 200W
• Blend 3 – 150W

COAGULATION

• Spray – 120W
• Fulgurate – 150W
• Desiccate – 150W

BIPOLAR MODE

• Soft – 80W
• Force – 80W

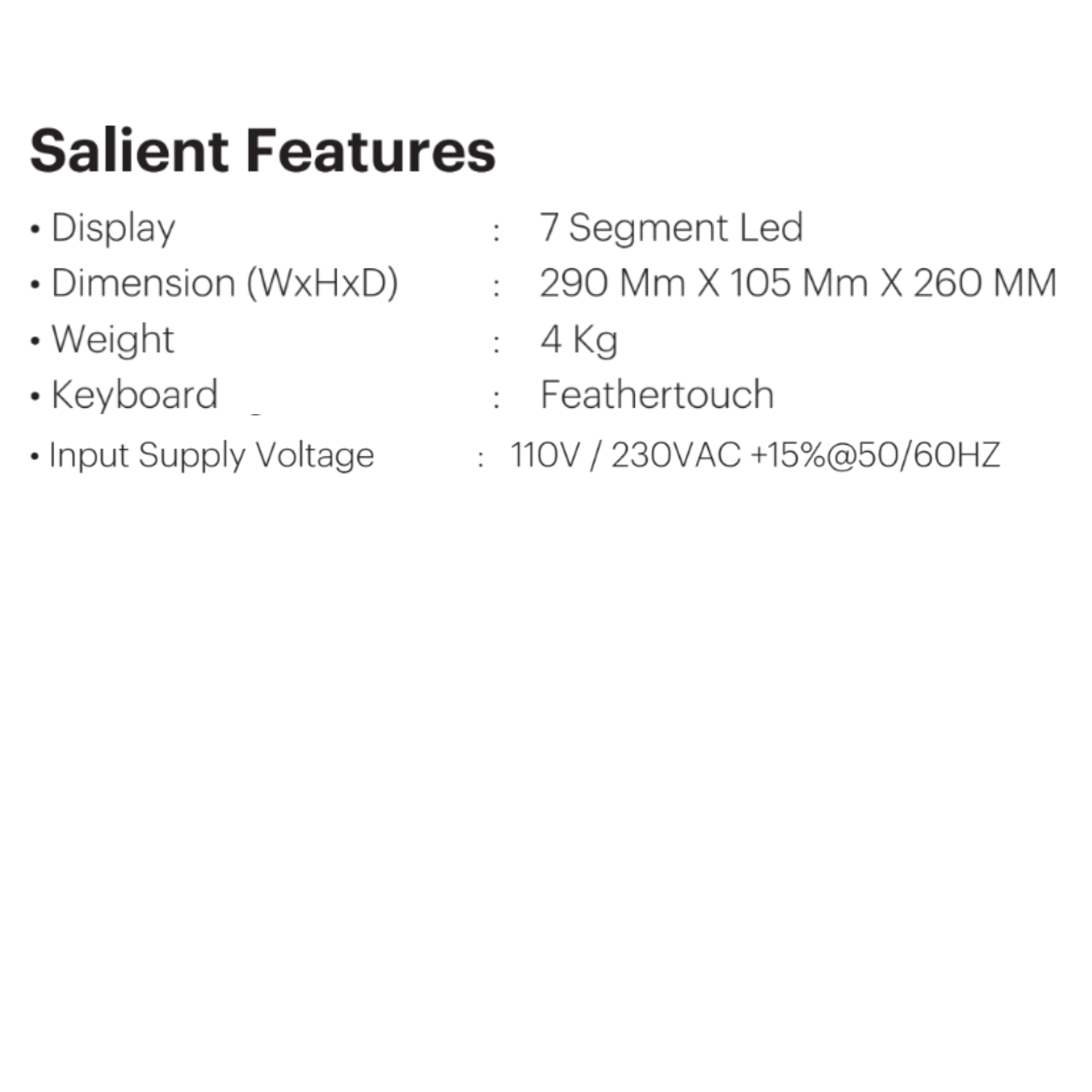

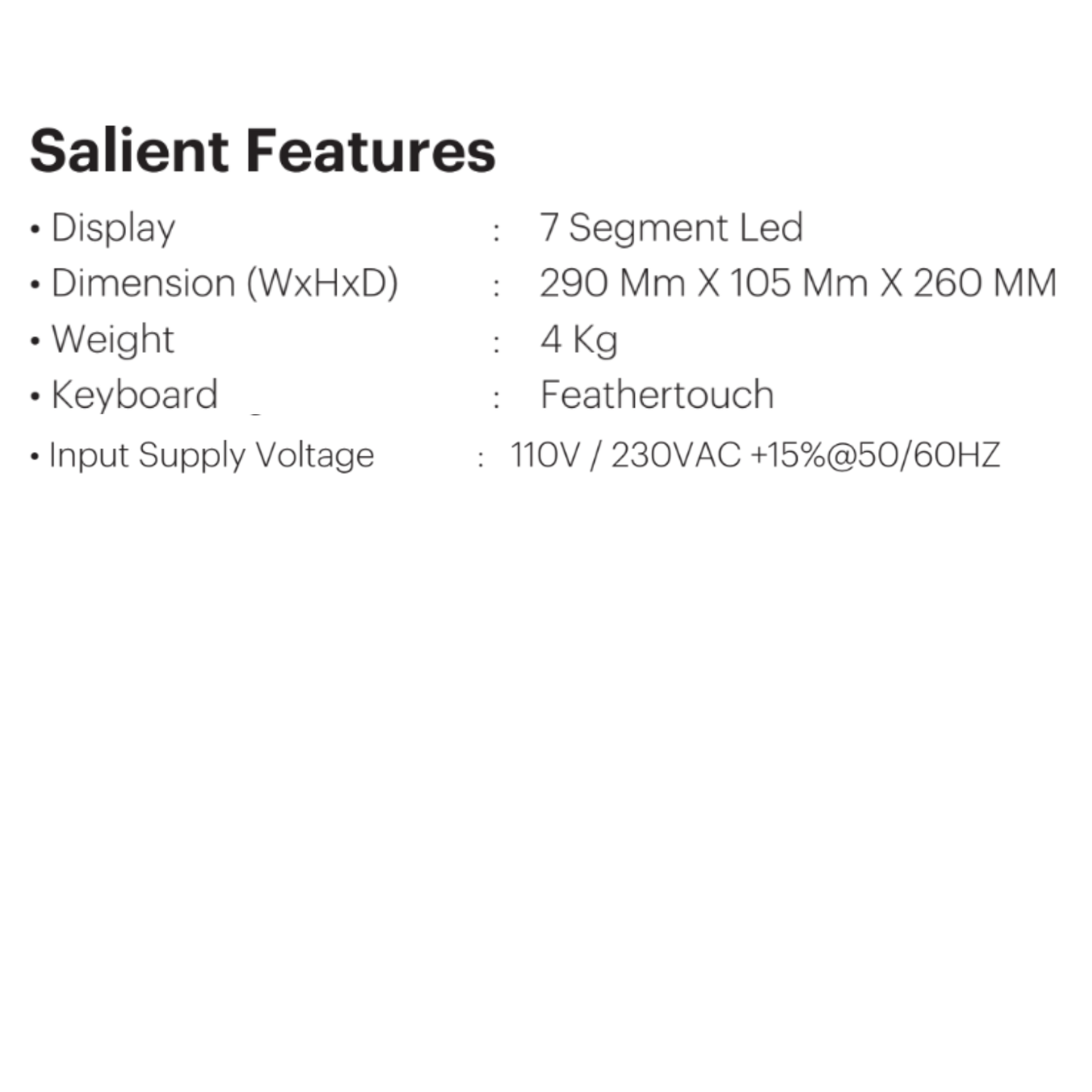

Salient Features

• 7 segment LED display
• Feather-touch keyboard
• Stable output frequency (480 kHz)
• Compact size for easy handling
• Consistent performance across modes

Technical Specifications

1. Power Output: 250W
2. Frequency: 480 kHz
3. Display: 7 Segment LED
4. Input Voltage: 110V / 230V AC ±15%, 50/60 Hz
5. Dimensions (W×H×D): 290 × 105 × 260 mm
6. Weight: Approx. 4 kg
7. Control System: Microprocessor-based

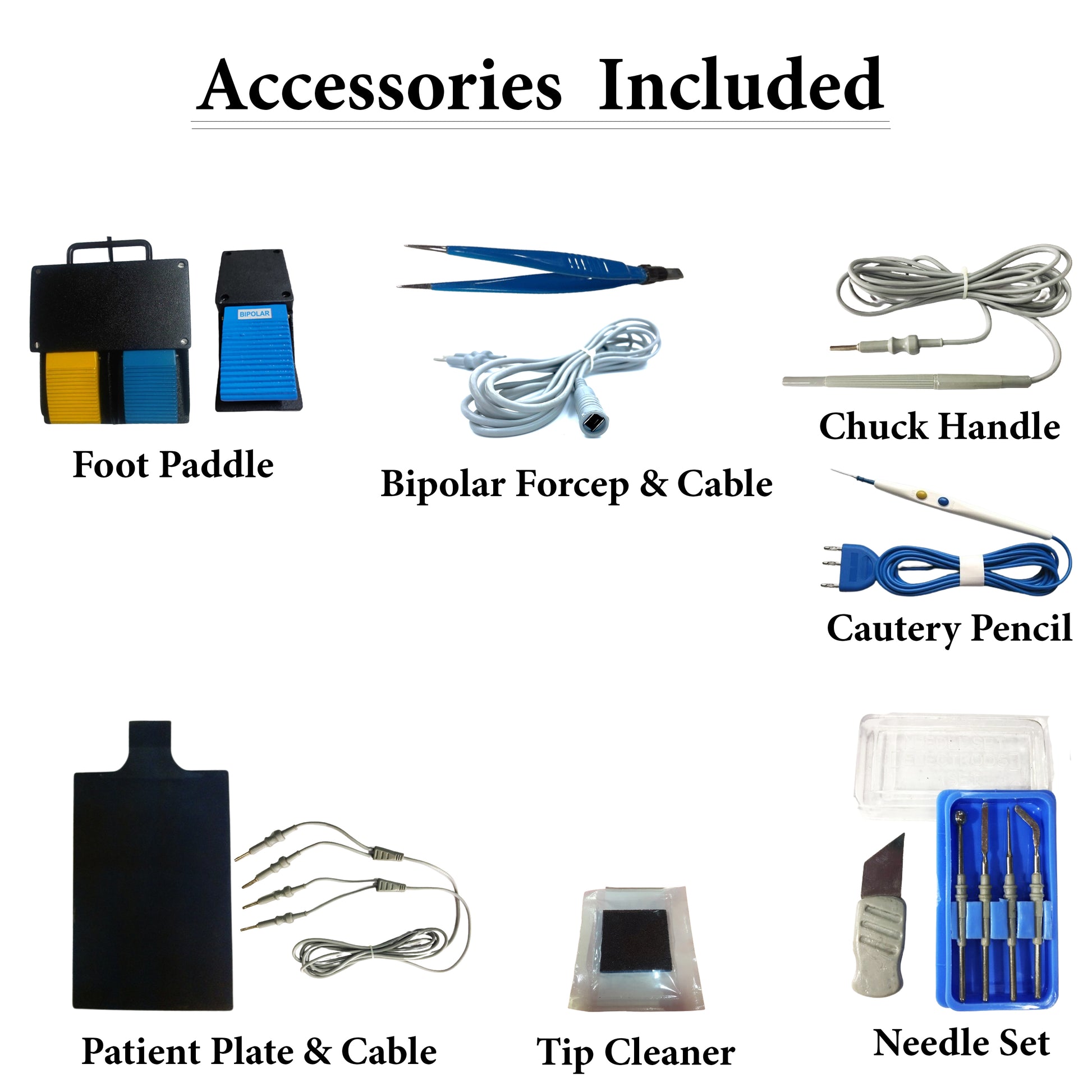

Accessories Included

1. Foot paddle
2. Bipolar forceps with cable
3. Patient plate with cable
4. Cautery pencil
5. Chuck handle
6. Needle set
7. Tip cleaner
